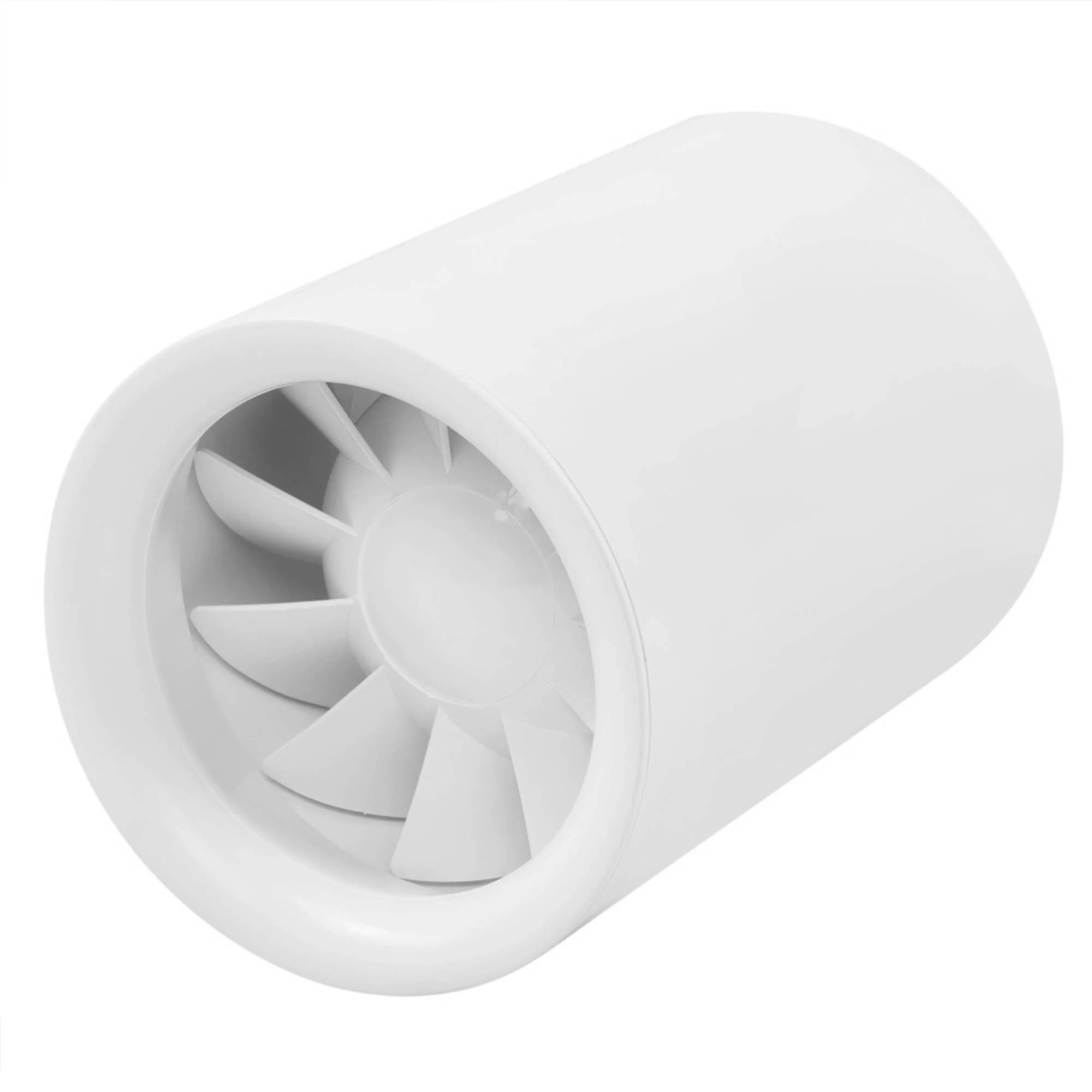

Inline Duct Exhaust Fan 100/125/150 mm

Choose the right model based on the size of your room and your ventilation needs:

• A fan without a check valve and a timer is suitable for rooms with good natural ventilation, where there are no problems with odors or excessive humidity. This is a simple and practical solution for guest bathrooms, storage rooms, technical rooms or small bathrooms with conventional ventilation.
• The fan model with a check valve and a timer is equipped with two functions at once: a check valve and a delay timer for switching off. The check valve prevents odors and air from the ventilation shaft from returning to the room, and the timer allows the fan to run for a few more minutes after the lights are turned off to effectively remove moisture and odors. This model will be of interest to users whose ventilation system in the house is not equipped with a reverse draft.

Advantages and differences:

• Check valve - automatically closes the ventilation duct after the fan is turned off, preventing reverse draft.
• Delay timer for switching off - keeps the fan running for a set time after the power is turned off.
• Model without additional functions - standard connection without constant phase and additional mechanisms.
• Model with valve and timer - requires constant power for correct operation of the timer

For a perfect, seamless finish, install the fan together with the EDPLIT Concealed Fan Mounting System.

Recommended tools:
Drill, screwdrivers, level, measuring tape, pencil, wall anchors, wire stripper, voltage tester.

Tips:
Turn off power before starting. Secure the fan firmly to avoid vibration. Follow wiring instructions carefully and test the fan after installation.

To create a fully concealed ventilation solution, combine the fan with the EDPLIT hidden installation system designed for tiled interiors. The hidden bathroom exhaust fan without consumables provides a flexible option for projects where installers already have their own cutting tools and materials, while the concealed bathroom fan system allows the ventilation unit to blend seamlessly behind the tiled surface. For accurate tile preparation during installation, the tile cutting kit for concealed bathroom exhaust fan helps achieve precise openings and a clean finished result. If additional maintenance access is required in tiled areas, the bathroom tile access panel provides a discreet solution while maintaining the overall minimalist design.

This Inline Duct Fan is for indoor use only and must be installed horizontally.

For a clean, minimalist look, use the EdPLIT Concealed Fan Mounting System. It hides the entire fan behind the wall with no visible grille or external elements, blending perfectly into premium interiors.
Both models work on standard European mains power (230 V). Inline Duct Fan not regulated on US border (120 V).

Without Timer and Check Valve Model (Single-phase)

Model 100
Maximum airflow: 100 m³/h
Noise level: 25 dB
Power usage: 7.5 W
Duct size: Ø 100 mm
Protection rating: IPX4
Recommended for guest toilets and small WC rooms.

Model 125
Maximum airflow: 197 m³/h
Noise level: 32 dB
Power usage: 13 W
Duct size: Ø 125 mm
Protection rating: IPX4
Ideal for bathrooms up to 8 m².

Model 150
Maximum airflow: 335 m³/h
Noise level: 39 dB
Power usage: 22 W
Duct size: Ø 150 mm
Protection rating: IPX4
Best suited for larger bathrooms or utility rooms up to 12 m².
Note: All models are compatible with the EdPLIT flush-mount system (sold separately).

• Current frequency - 50 Hz, 60 Hz;
• Voltage - 230 V

With Timer and Check Valve Model (Duo-phase)

Model 100
Maximum airflow: 100 m³/h, min 75 m³/h
Max Noise level: 25 dB, min 22
Max Power usage: 7.5 W, min 4.5 W
Duct size: Ø 100 mm
Protection rating: IPX4
Recommended for guest toilets and small WC rooms.

Model 125
Maximum airflow: 197 m³/h, min 145 m³/h
Noise level: 32 dB, min 29
Power usage: 13 W, min 10 W
Duct size: Ø 125 mm
Protection rating: IPX4
Ideal for bathrooms up to 8 m².

Model 150
Maximum airflow: 335 m³/h, min 250 m³/h
Noise level: 39 dB, min 36 dB
Power usage: 22 W, min 19 W
Duct size: Ø 150 mm
Protection rating: IPX4
Best suited for larger bathrooms or utility rooms up to 12 m².
Note: All models are compatible with the EdPLIT flush-mount system (sold separately).

• Current frequency - 50 Hz, 60 Hz;
• Voltage - 220-240 V
