Hidden Exhaust Fan Mounting System Edplit (Without Consumables) - Without Duct Fans 100/125/150 mm

Name: Hidden Exhaust Fan Mounting System Edplit (Without Consumables) - Without Duct Fans 100/125/150 mm
Brand: EDPLIT
SKU: E30004
Price: 4700.0 UAH
Availability: InStock

In stock

₴4,700

NEW

This product is a concealed mounting system that allows you to integrate a standard axial or duct fan discreetly into your bathroom or toilet space.

Please Note:
This product is a mounting system only.
The fan is not included and should be selected separately based on your airflow and noise requirements.

View all hidden bathroom exhaust fans

Choose System Sizes: 100

Add-on:

Inline Duct Exhaust Fan 100/125/150 mm

₴7,900.00

Simple on the outside. Precise underneath.
Clean lines, hidden details, and seamless integration — this is where design meets engineering.
Watch how it's done.

Ready for magic? Click here

Fan - Watch the detailed installation video and demonstration. It feels like magic, but it's pure mechanics.

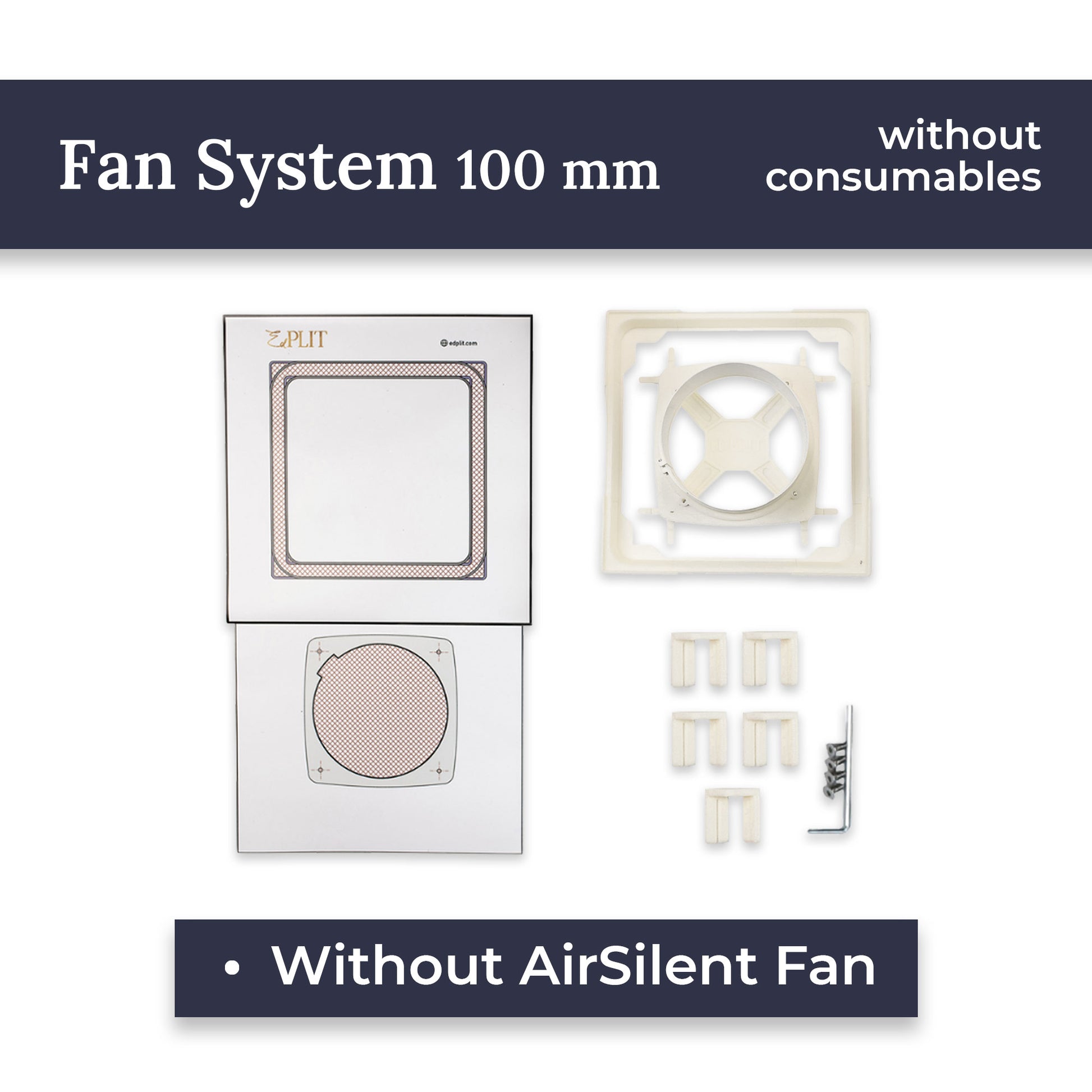

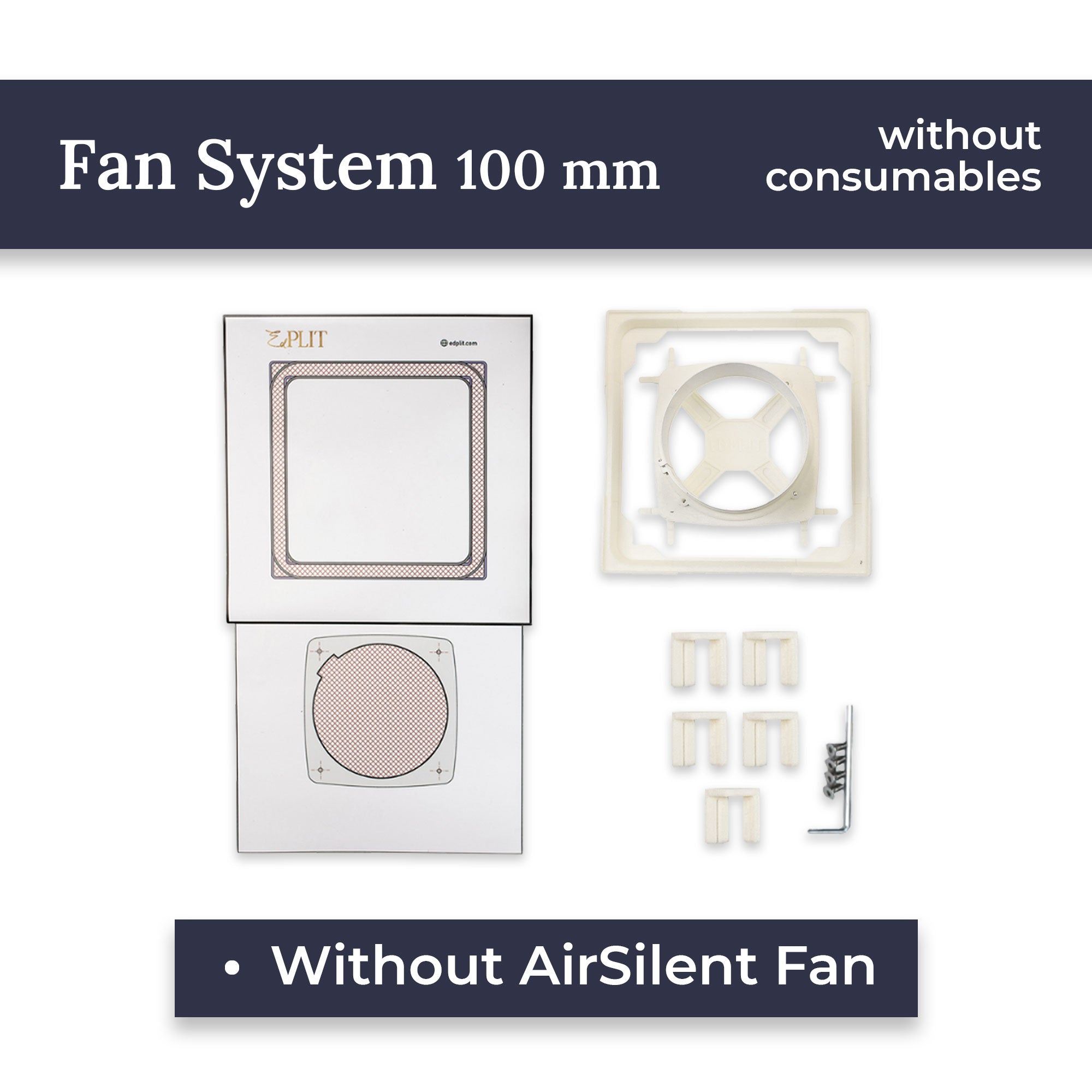

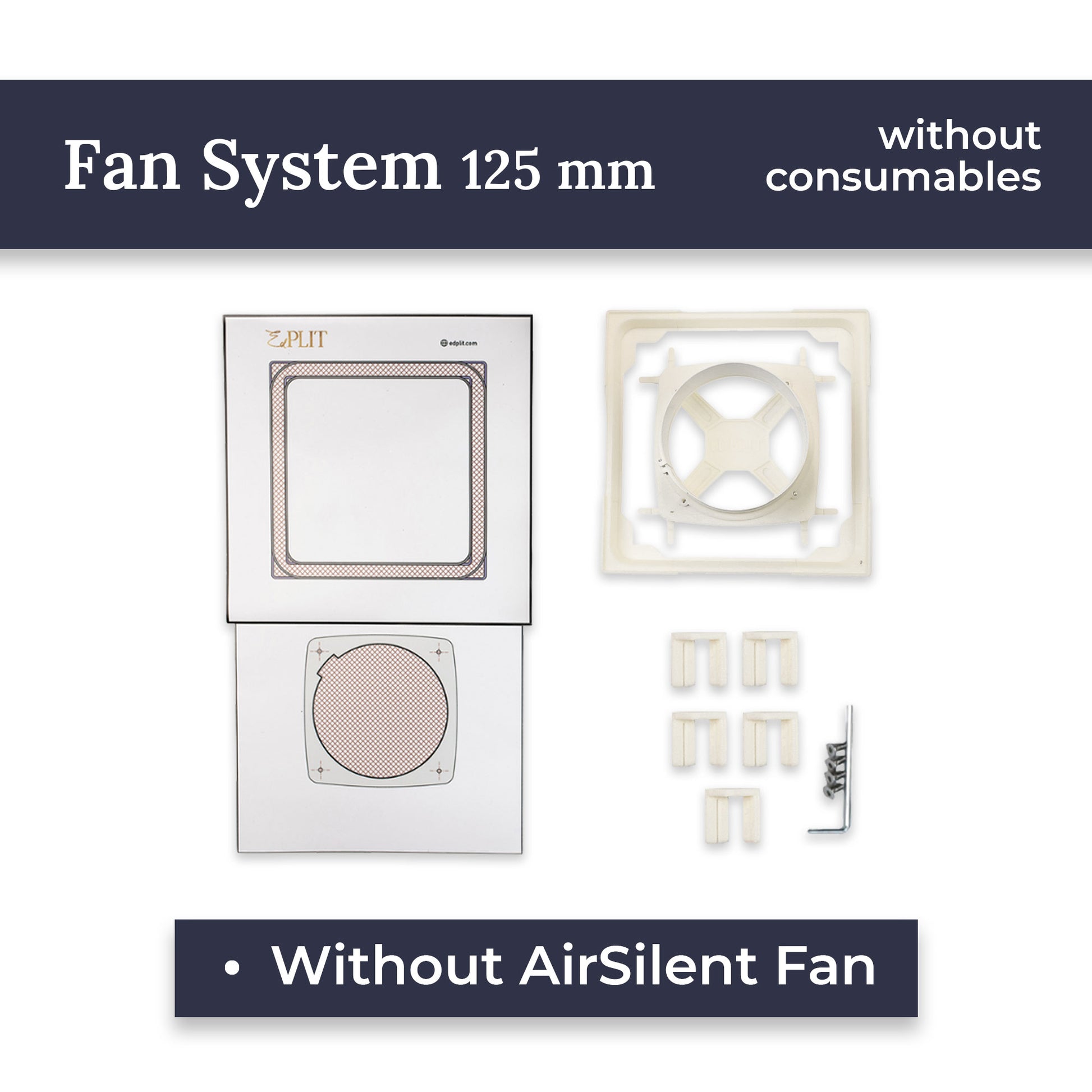

WHAT'S IN THE BOX

Mounting Frame

Fixing Elements

Fan Lock

Holder

Adhesive Templates fan

Corner Fixators

Fixing Screws and the Adjustment Tool

WHY CHOOSE EDPLIT HIDDEN EXHAUST FAN?

Proven durability with 2-year warranty

Tested in 1000+ installations and designed for long-term daily use

Easy installation with standard duct fans

Enables quick setup with minimal effort using standard ventilation systems

Compatible with multiple fan sizes

Supports 100, 125, and 150 mm systems for different room sizes

Seamless integration with tiled surfaces

Designed to integrate flush with ceramic, porcelain, or stone tiles for a clean, uninterrupted wall look

Fan Patented invisible system

1st fully integrated and patented hidden bathroom exhaust fan

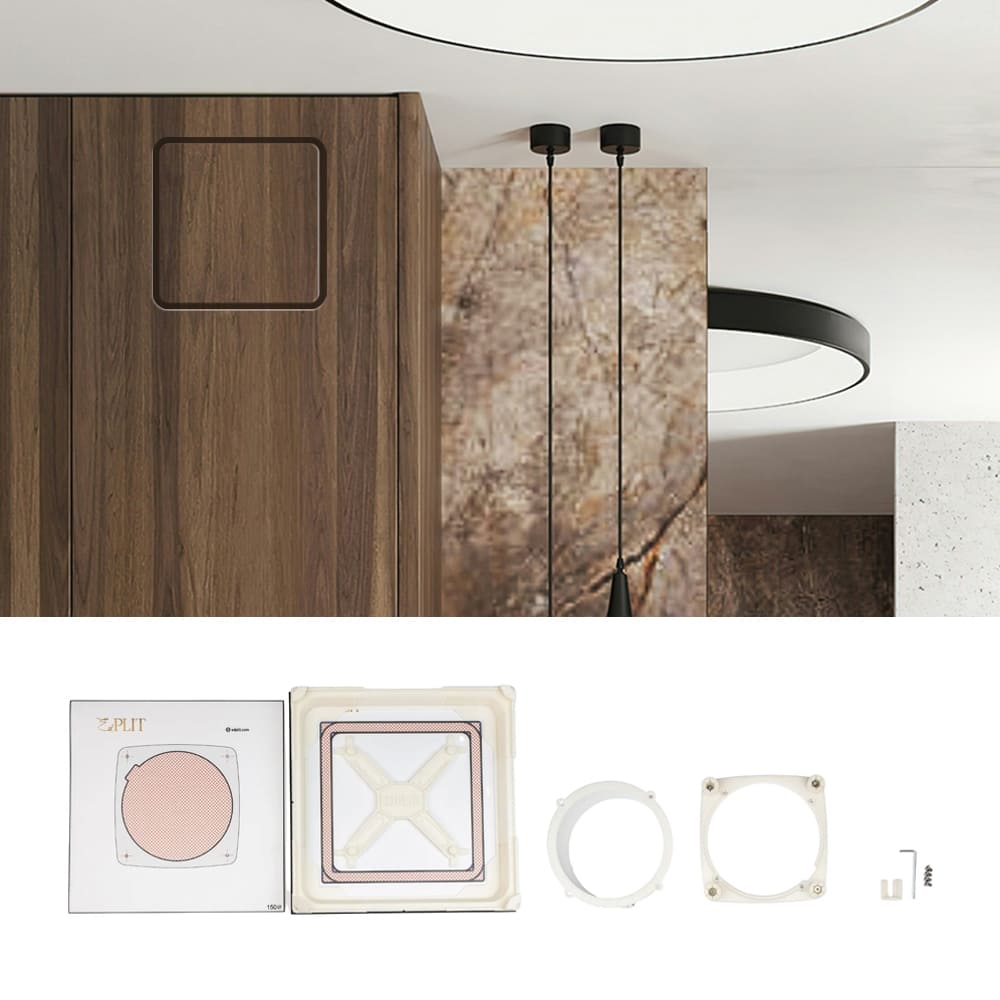

Clean look without visible vents

No grills or plastic covers, only the tiled surface remains visible

Fan System Overview (basic set)
Tools & Tips (EdPlit Fan System)
Fan System Compatibility
Shipping and Manufacturing

A modular installation system that enables concealed mounting of fans with diameters of 100 mm, 125 mm, or 150 mm. It allows full tiling, leaving only a subtle airflow gap, while ensuring access for maintenance if needed.

Available Sizes:
100 mm — ideal for guest toilets or compact powder rooms
125 mm — suitable for medium bathrooms or rooms up to 8 m²
150 mm — perfect for larger bathrooms or spaces up to 12 m²

Included in the Set:
Concealed mounting elements
Installation hardware
(Fan not included)

To create the tile insert, use the included adhesive template to mark the cut-out precisely.

Recommended tools:

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone.
Adhesive template:The kit includes adhesive templates
Glue: PU glue

Edplit Concealed Fan Mounting System is fully adjustable to fit various project needs:

The system is compatible with:
Ceramic tiles up to 12 mm
Porcelain tiles up to 12 mm

Frame can be removed without special tools

Manufacturing Time - 4-5 business days

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

Standard Delivery (14-21 business days): €15 - €89
Standard Delivery + Insurance (14-21 business days): €20 - €94
Express Delivery (5-14 business days): €24 - €98

Customs Fees & Import Taxes

Our prices do not include VAT, GST, or other import taxes.
Additional customs fees may apply depending on your location.
You will receive a notification from customs for payment before final delivery.
For any questions regarding shipping, feel free to contact our support team!

Processing Times

Orders are processed within 1-2 business days.
We ship orders Monday through Friday (excluding weekends and holidays).
Please note that processing and shipping are separate steps with different timeframes.

Fan System Overview (basic set)

Tools & Tips (EdPlit Fan System)

Fan System Compatibility

Shipping and Manufacturing

Manufacturing Time - 4-5 business days

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

Standard Delivery (14-21 business days): €15 - €89
Standard Delivery + Insurance (14-21 business days): €20 - €94
Express Delivery (5-14 business days): €24 - €98

FAQ

Does the concealed bathroom fan include a timer, backdraft damper, or humidity sensor?

No, these features are not included at the moment, but we are currently working on expanding the functionality.

What does “Fan with or without consumables” mean?

Consumables are additional materials required during installation but are not part of the main product.These may include drill bits, cutting and grinding discs, and sandpaper.Many installers already have these tools, so we offer options both with and without consumables.

Is the fan included in the Edplit concealed fan mounting system?

The system is available both with and without a fan. You can choose a complete set with a compatible fan or purchase the mounting system separately.For optimal performance, we recommend using a compatible duct fan such as the Edplit QuietLine Duct Exhaust Fan (100/125/150 mm), which is designed for quiet operation and reliable airflow.

Can I remove or replace the fan after installation?

Yes. The fan is easily replaced after the fan system is installed

What tile thickness is required for Fan?

Supports tile thickness up to 12 mm

Do I need special tools for installation Fan?

Cutting: If you cut the hatch shape yourself by hand, you will need consumables. Installation: All installation materials are provided with each kit.

Which materials are Edplit concealed exhaust fans compatible with?

Tiles, porcelain stoneware, stone.Other materials, such as chipboard, medium density fiberboard or plasterboard: It's difficult to give a definitive answer, it depends on many factors. Please contact us before placing an order
