Hidden Power Outlet & Switch System Edplit - Type F Schuko Socket

In stock
₴400
₴400
NEW

Transform your interiors with the sleek and modern EDPLIT Invisible Socket Outlet, a perfect solution for minimalistic and contemporary spaces. You will get Edplit module along with power outlet / switch mechanism.

Transform your interiors with the sleek and modern EDPLIT Invisible Socket Outlet, a perfect solution for minimalistic and contemporary spaces. You will get Edplit module along with power outlet / switch mechanism.

Show more Show less
Tile Thickness: 6-14 mm

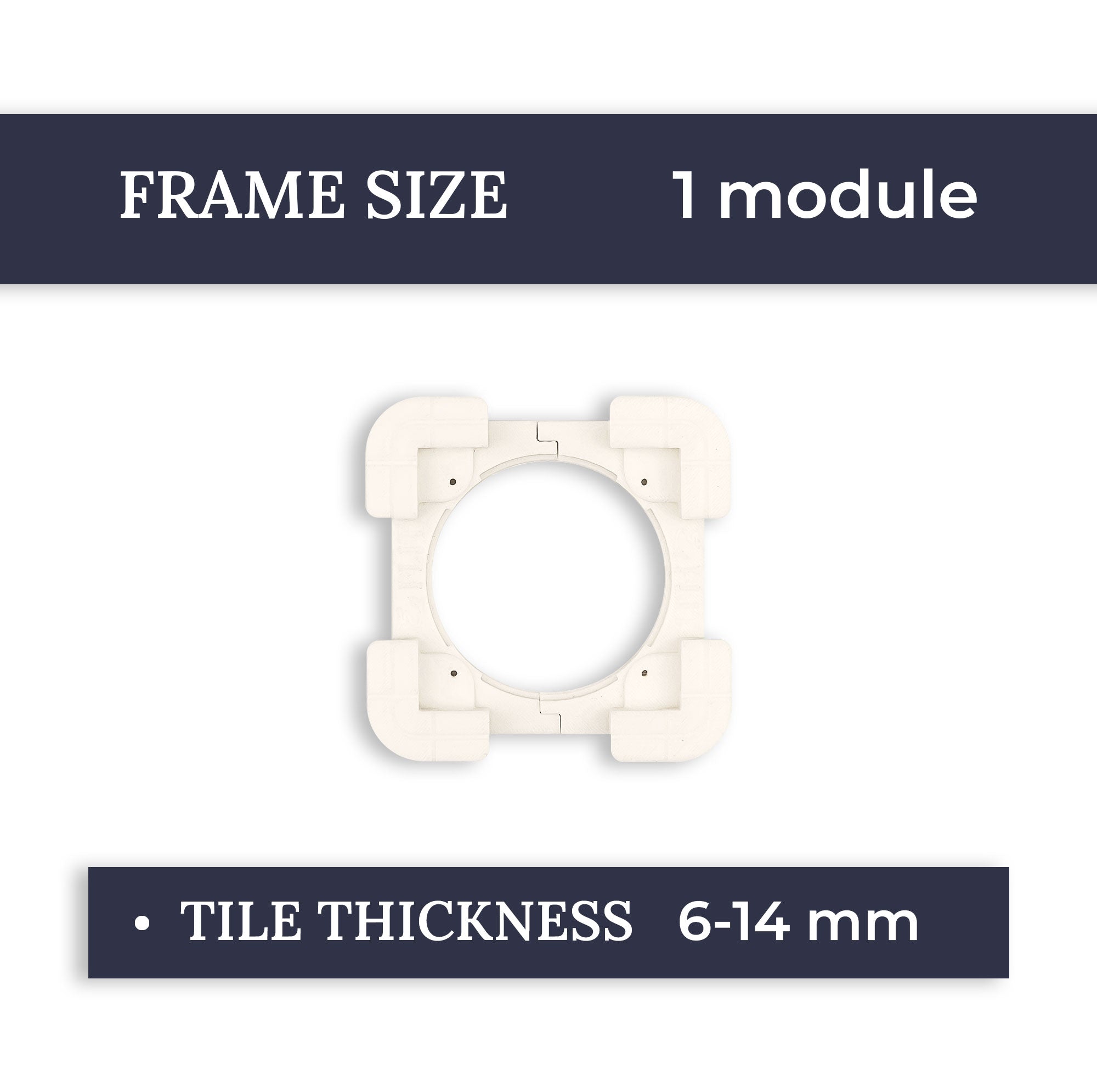

Frame Size: 1 module

Socket & Switches :

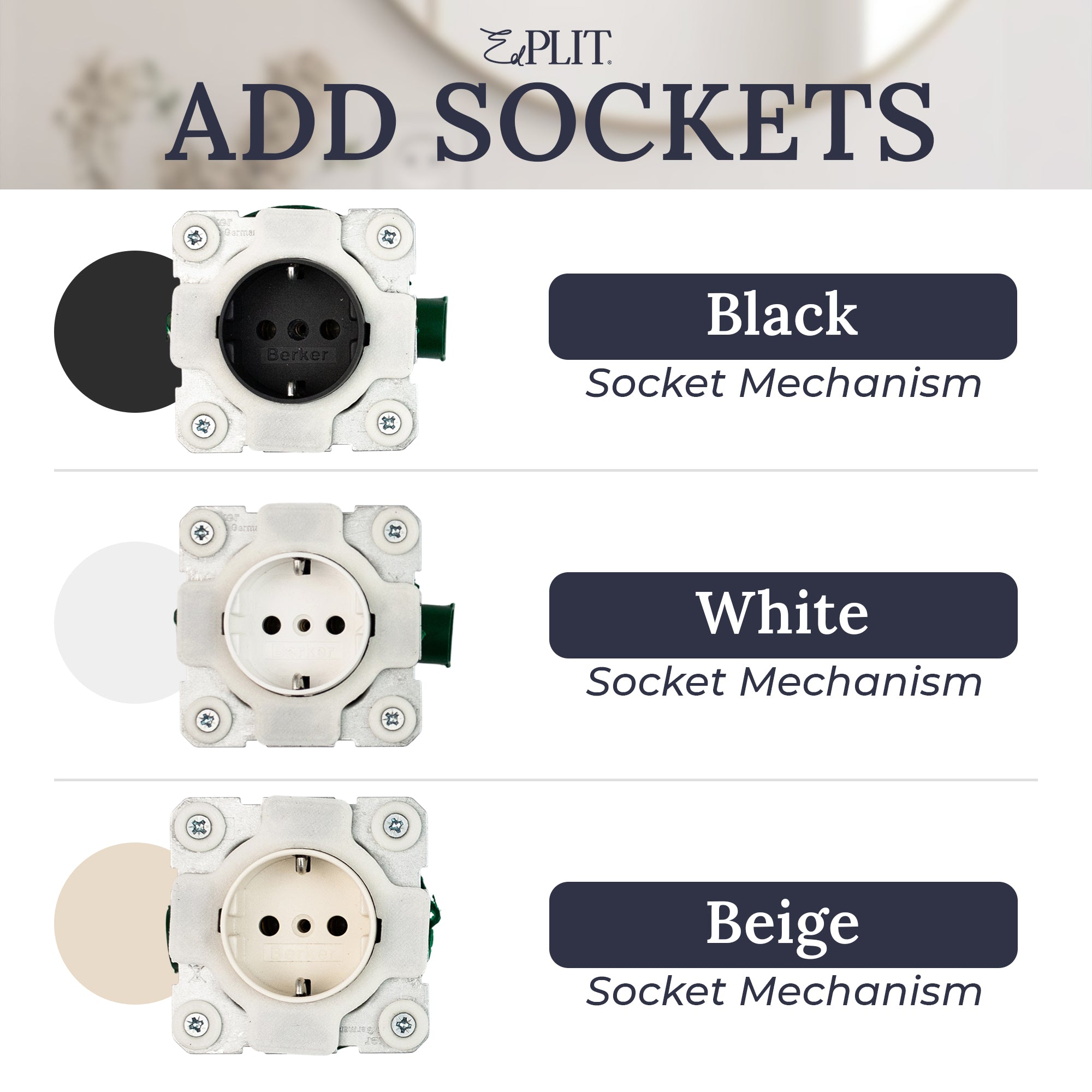

Add Sockets

Edplit Socket Mechanism – Black

₴1,500.00

Edplit Socket Mechanism – White

₴1,500.00

Edplit Socket Mechanism – Beige

₴1,500.00

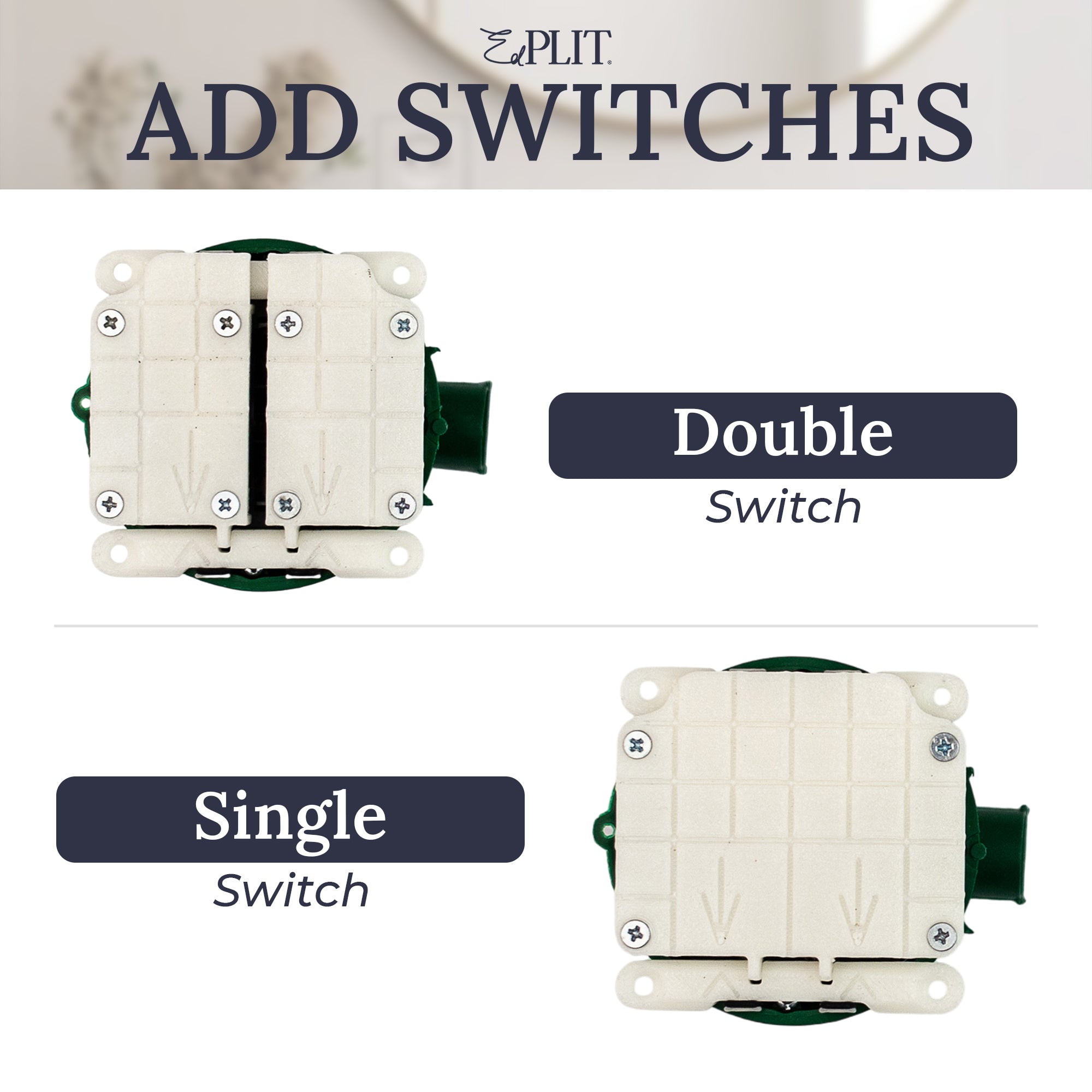

Add Switches

Edplit Invisible Switch – Single

₴1,500.00

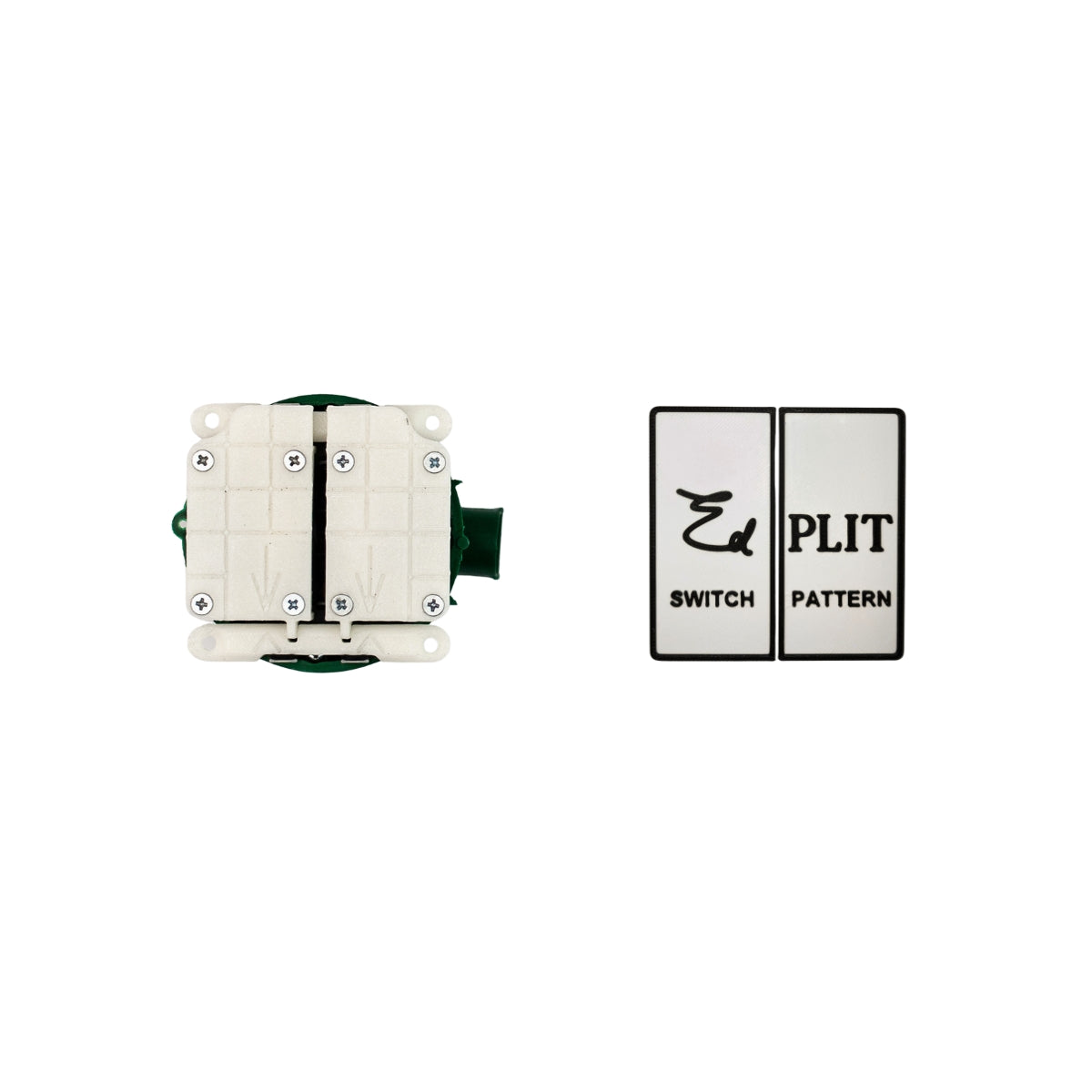

Edplit Invisible Switch – Double

₴2,500.00

Add-On:

Simple on the outside. Precise underneath.
Clean lines, hidden details, and seamless integration — this is where design meets engineering.
Watch how it's done.

Ready for magic? Click here

Electro - Watch the detailed installation video and demonstration. It feels like magic, but it's pure mechanics.

Benefits

Patented Invisible Mounting System

The only solution in its class that allows seamless integration of sockets and switches into the wall, without any visible frames, overlays, or gaps

Effortless Tile-Press Activation

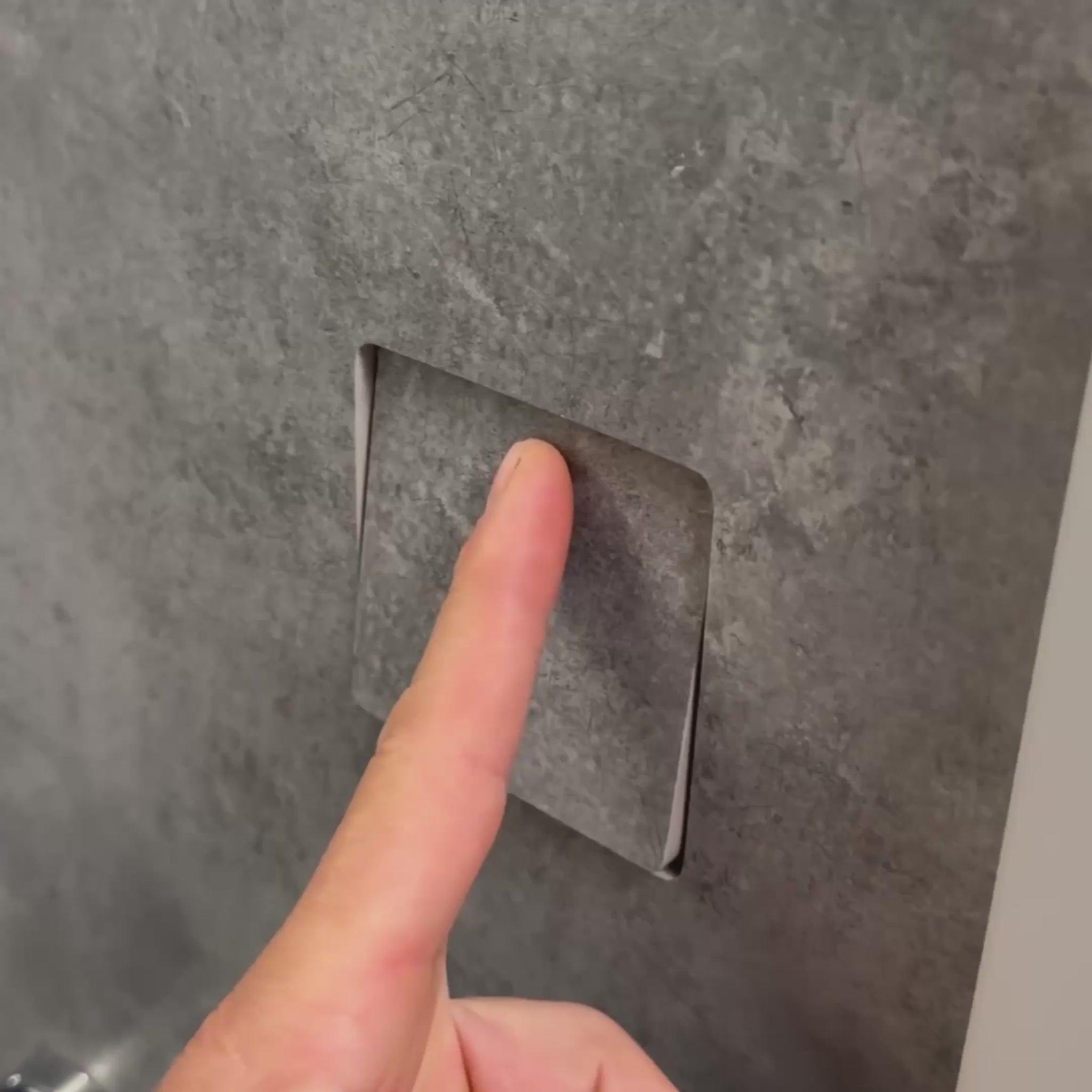

The system is activated with a gentle press directly on the tile surface, delivering a precise and tactile response thanks to its advanced mechanical design

Straightforward Installation and Adjustment

Easily adjust depth and alignment using just a standard screwdriver, available in every toolkit

Proven Reliability

Validated across 1000+ projects with guaranteed functionality and a 1-year warranty

How It Works

STEP 1

Transferring the Markings

Transfer the markings from the template sticker onto the wall at the desired installation location. Templates can be positioned either vertically or horizontally, depending on the layout.

STEP 2

Preparing the Tools for Cutting Openings

For the socket:

  • Plated diamond drill Ø6 mm – for the pin holes
  • Plated diamond drill Ø42 mm – for the cover hole
  • Disc and milling bits – for cutting the square opening and corners

STEP 3

Preparing the Tile and Mechanisms

 Socket:

  • Glue the socket mechanism to the tile.
    (We recommend using a two-component polyurethane adhesive.)
  • If the tile thickness is between 6 and 12 mm:
  • Sand down the socket frame to 6 mm using the special template included in the kit
  • Also sand the round part of the socket down to 2 mm


Switch:

  • No sanding of the tile is required
  • The switch buttons include adjustment screws that allow precise alignment with the surface of the tile

After adjustment, glue the tile-button onto the plastic mechanism

STEP 4

Wall Installation

Socket:

  • Install the socket by screwing it into the frame that has already been attached to the back of the tile
  • The frame has a thickness adjustment feature, allowing you to align the tile element flush with the main surface
  • Cover and magnets:Install the cover and magnetic elements by gluing them to the base

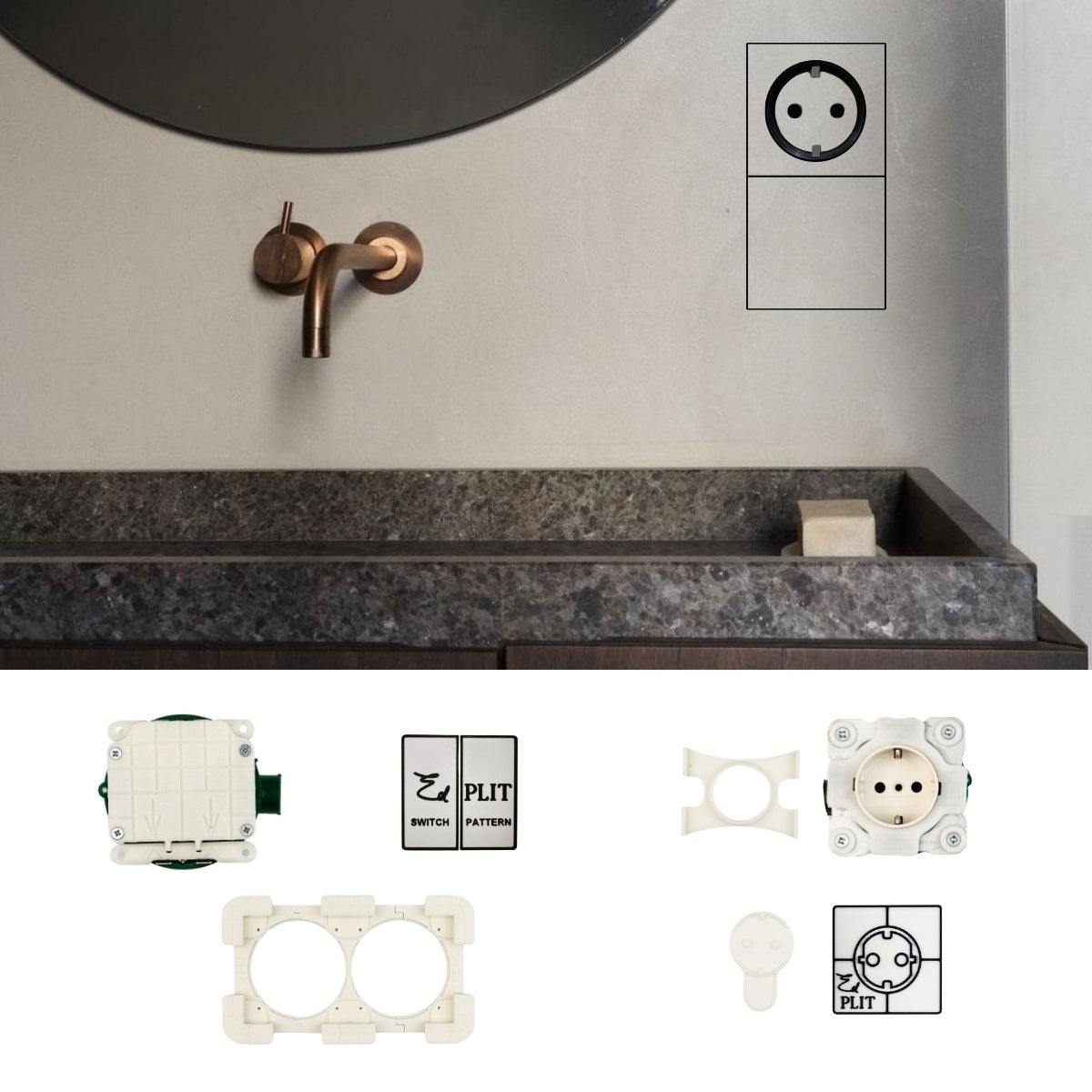

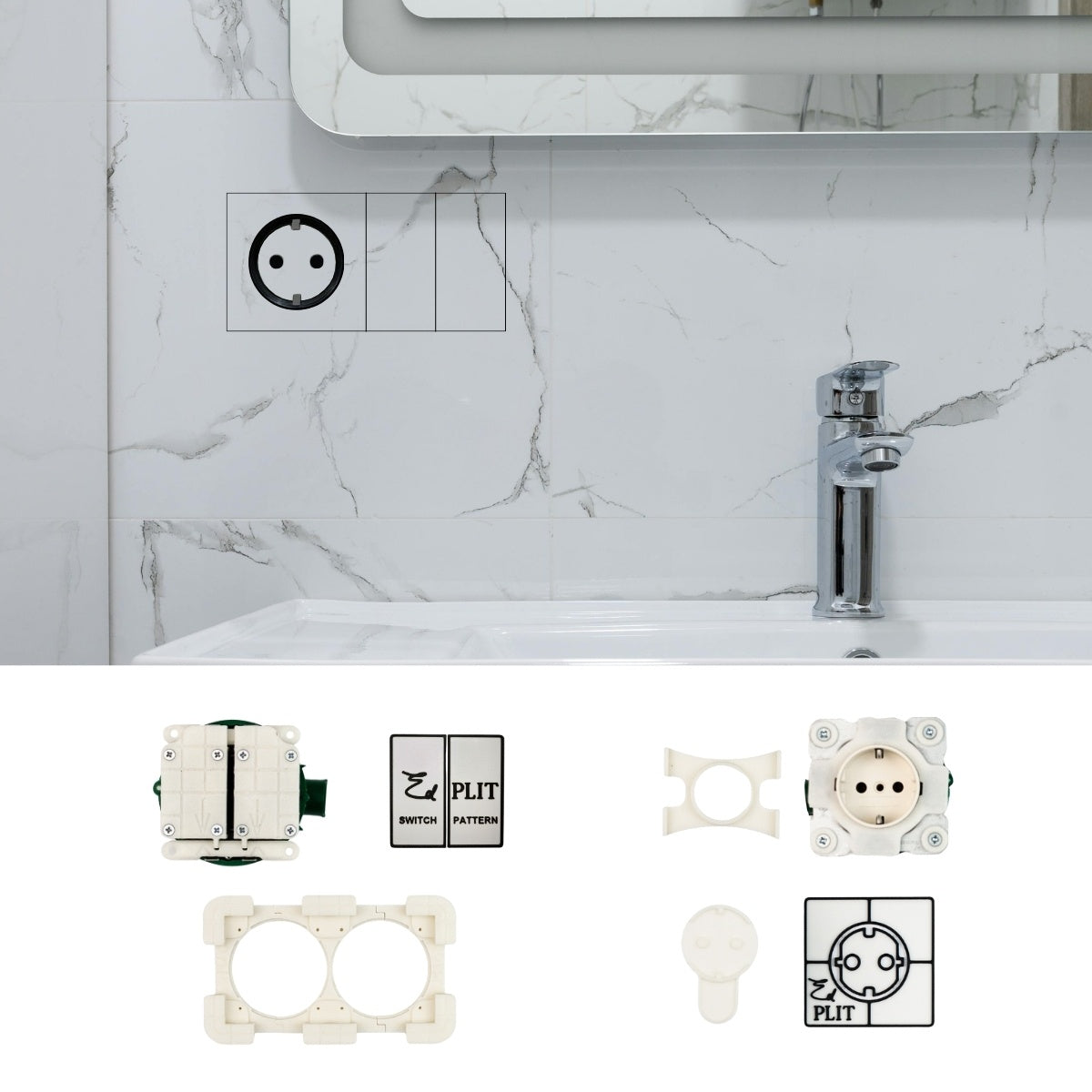

WHAT'S IN THE BOX

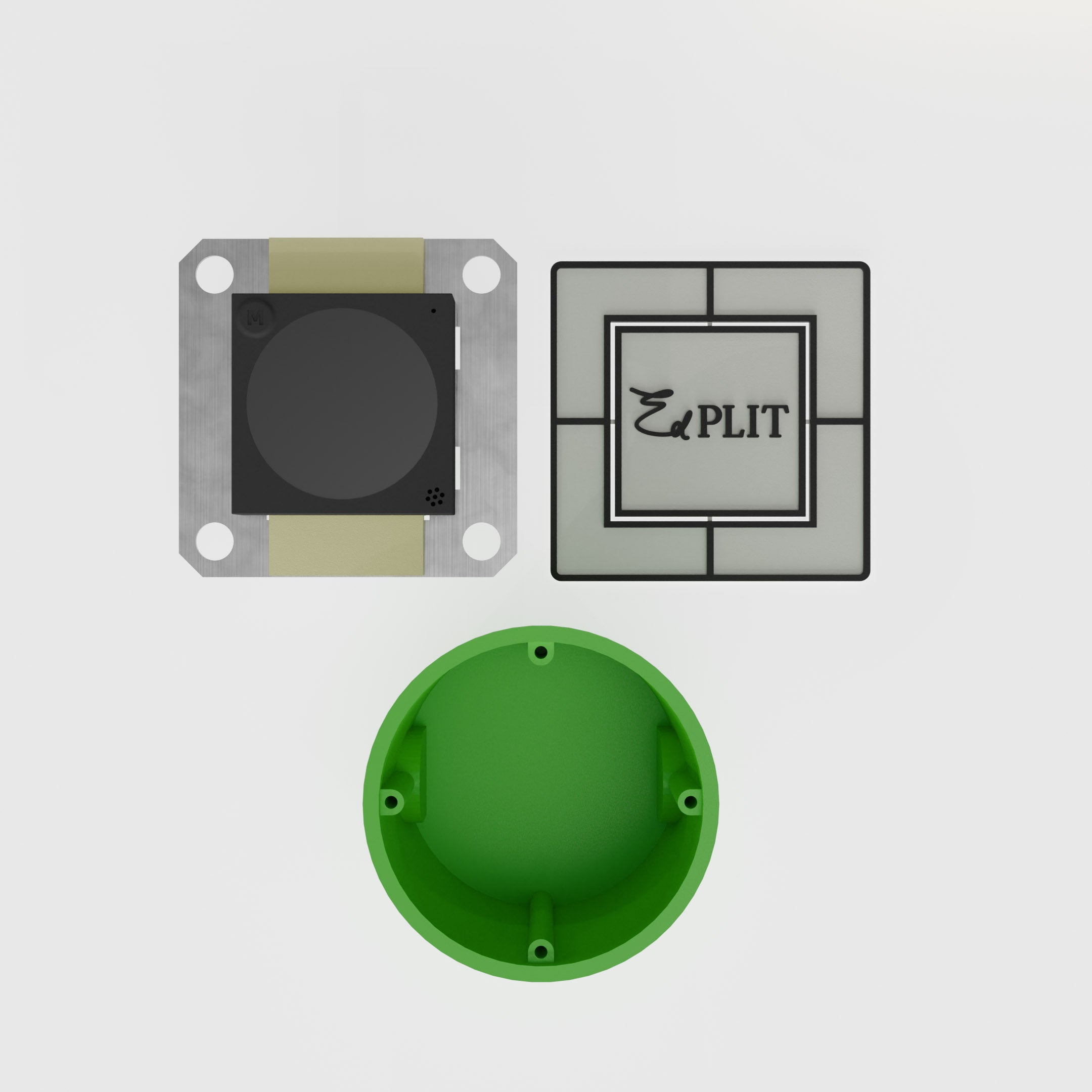

Mounting Frame Electro

Socket Modules

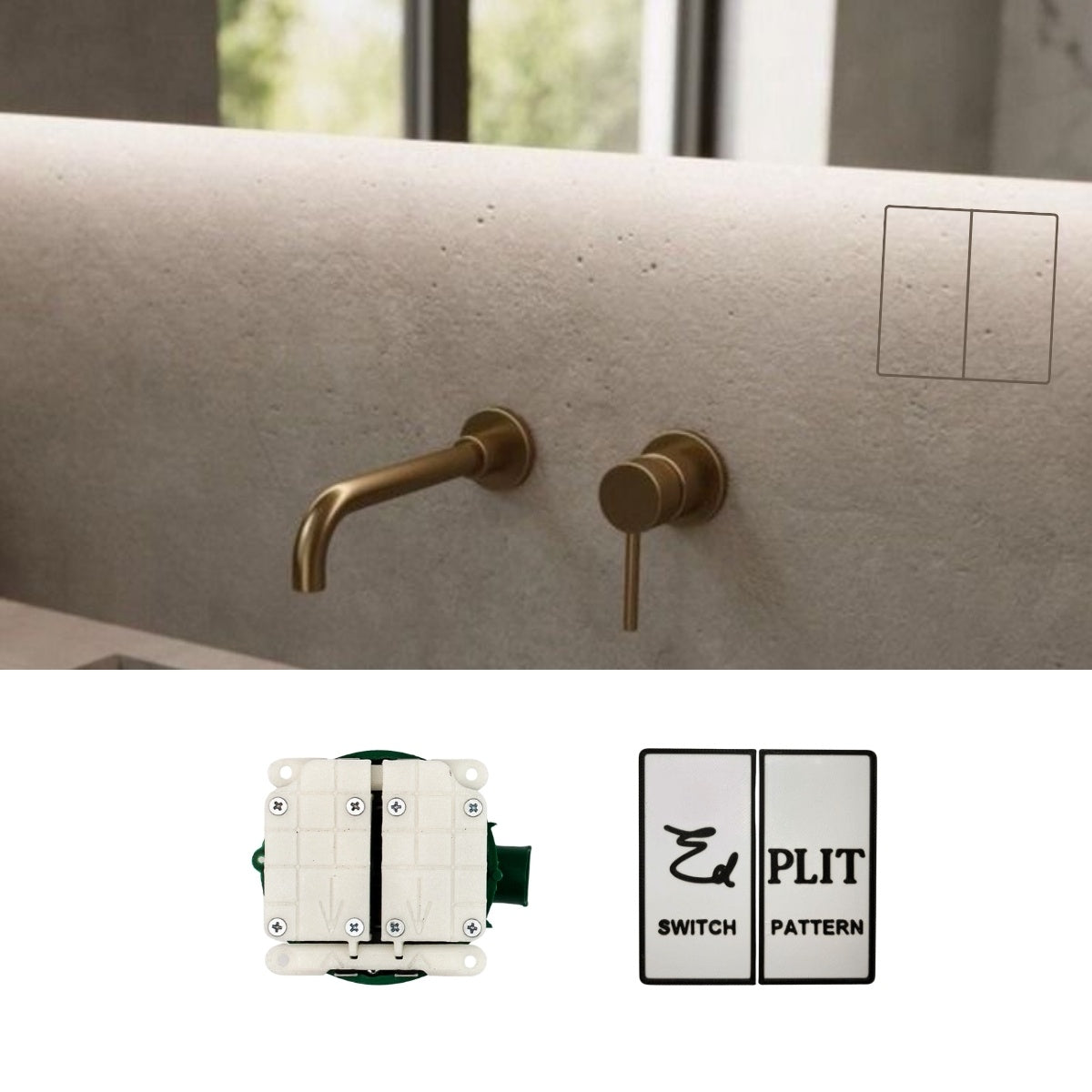

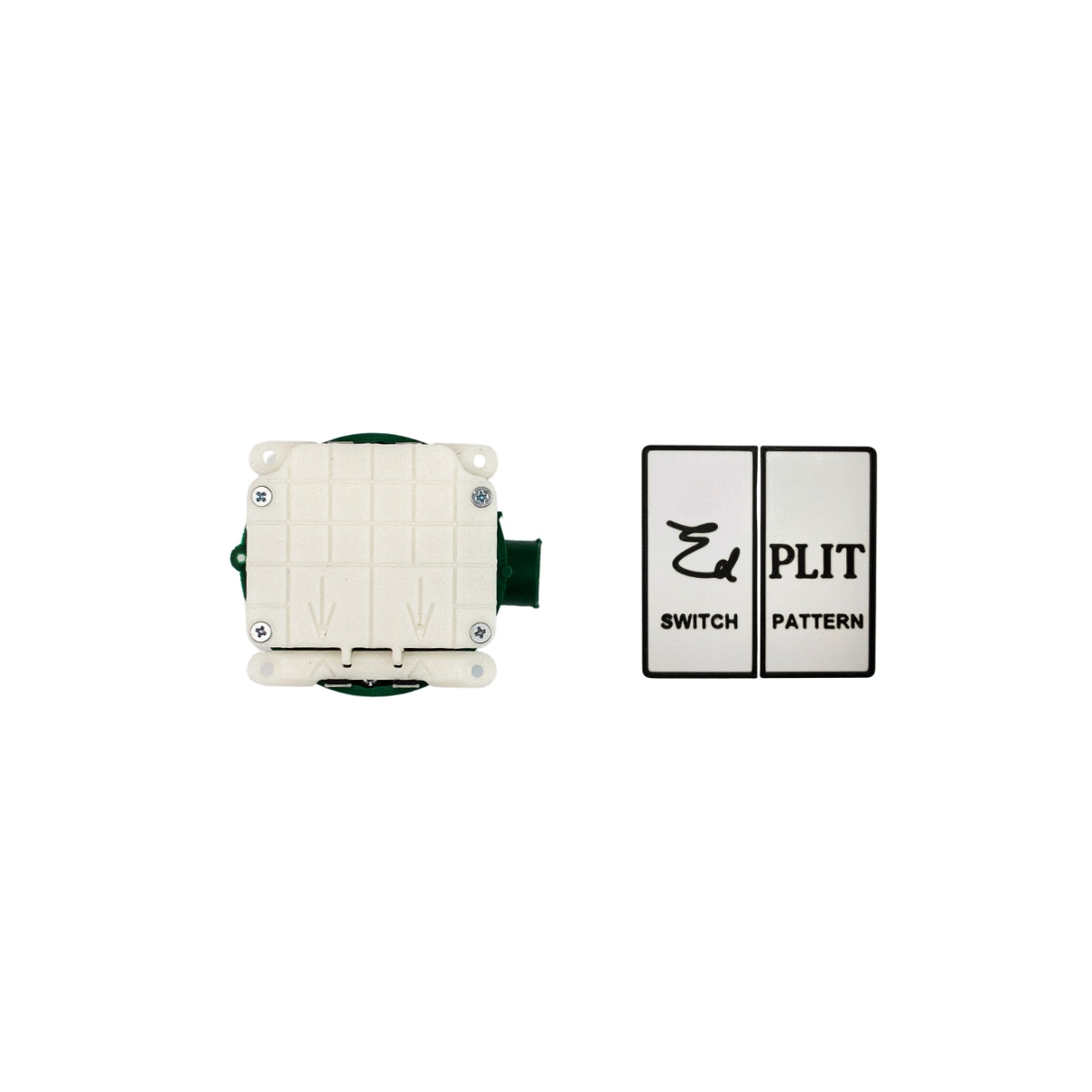

Switch Module

Dual Switch Module

Magnetic Mounting System

Socket Mounting Cup white

Socket Mounting Cup black

Socket Mounting Cup biege

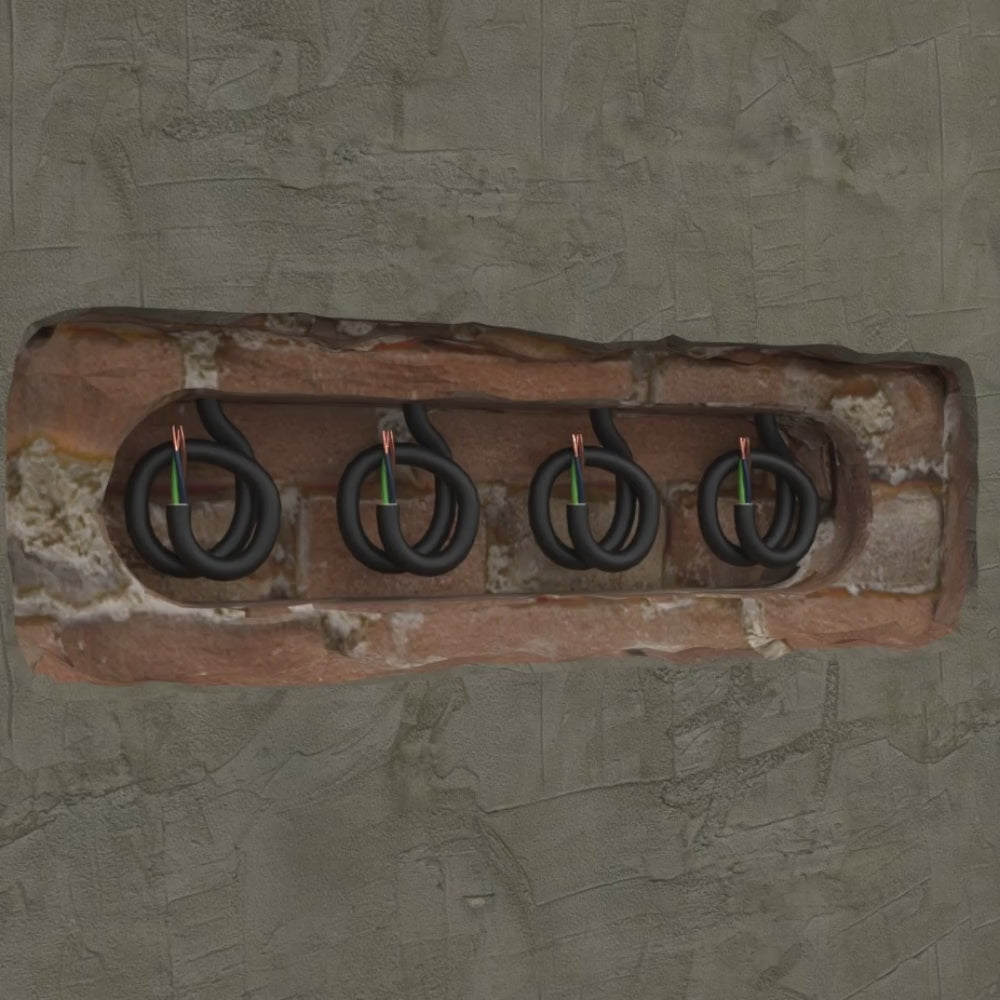

Wall Electrical Box

Adhesive Templates Electro

Tile Sanding Holders

EDPLIT Invisible Socket Outlet & Push Switch System is perfect for modern interiors where aesthetics matter.

Multiple Configurations
Customize your outlet setup—select from various socket types and configurations to suit your electrical requirements.

Socket Specifications
Socket Outlet Type: Type F (Schuko)
Voltage - 220V
Available Colors: White, Beige, Black
By default, the socket outlets come in white.
If you prefer beige or black, please make sure to specify your choice in the order notes.
Mechanisms: Berker*

Swithes Specifications
Rated current 10A, 10 AX, 16 AX.
Available Colors: White only.
Mechanism: Siemens*

Built with safety in mind, all internal mechanisms are certified and meet international safety standards to ensure secure and reliable use.

*Important Note:
EDPLIT is not the original developer or manufacturer of the socket or switch mechanisms themselves. For our installations, we use high-quality, EU certified internal components: Berker mechanisms for sockets, Siemens mechanisms for switches (included in the set). This ensures full compatibility, safety, and long-term performance.

To create the tile insert, use the included adhesive template to mark the cut-out precisely.

Recommended tools:

Diamond Hole Saw Ø42mm for Socket Installation or Edplit Socket Cutting Kit (can be found in our add-ons).

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone.
Adhesive template:The kit includes adhesive templates
Glue: PU glue

The system is compatible with:
Ceramic tiles (up to 24 mm)
Porcelain tiles (up to 24 mm)

Please note:

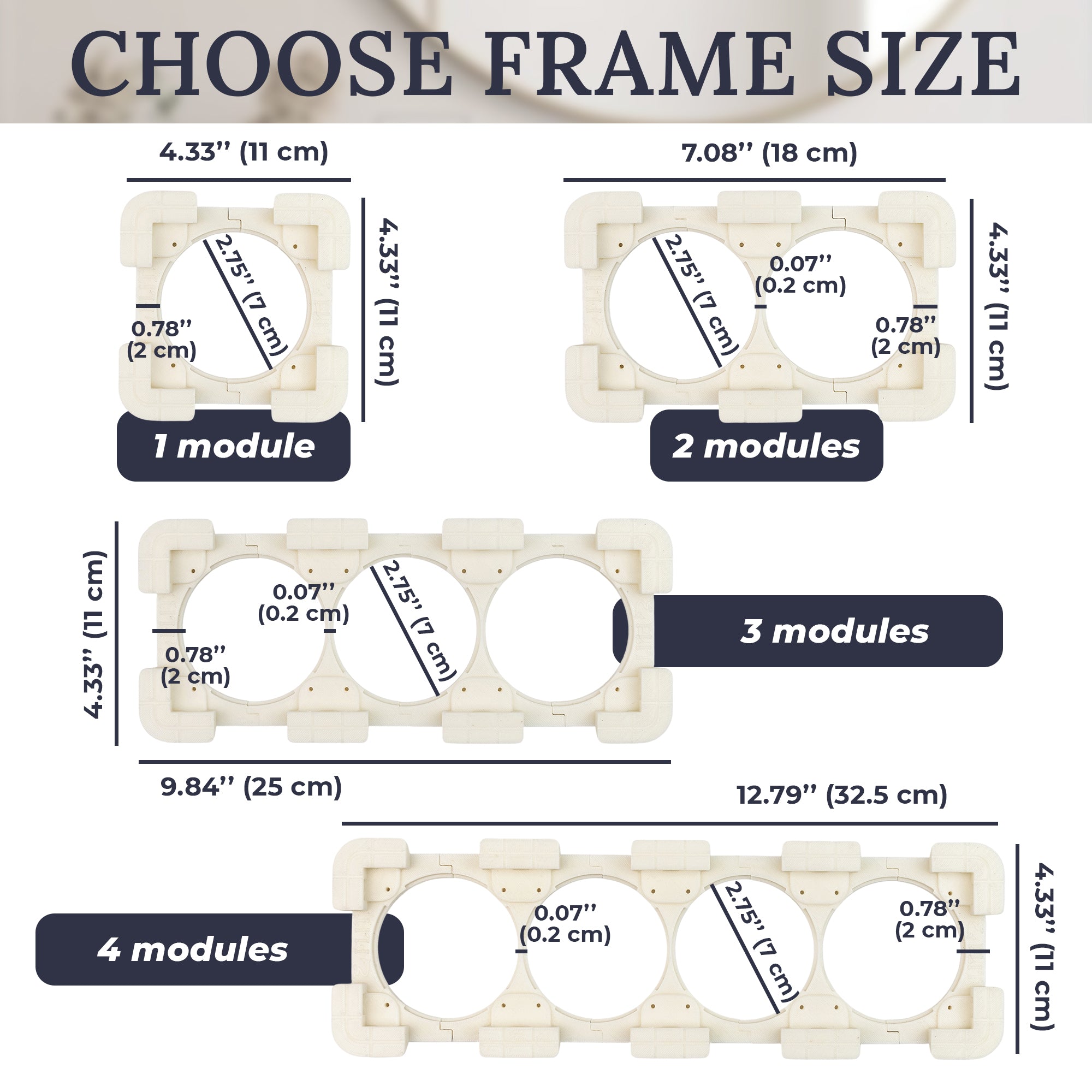

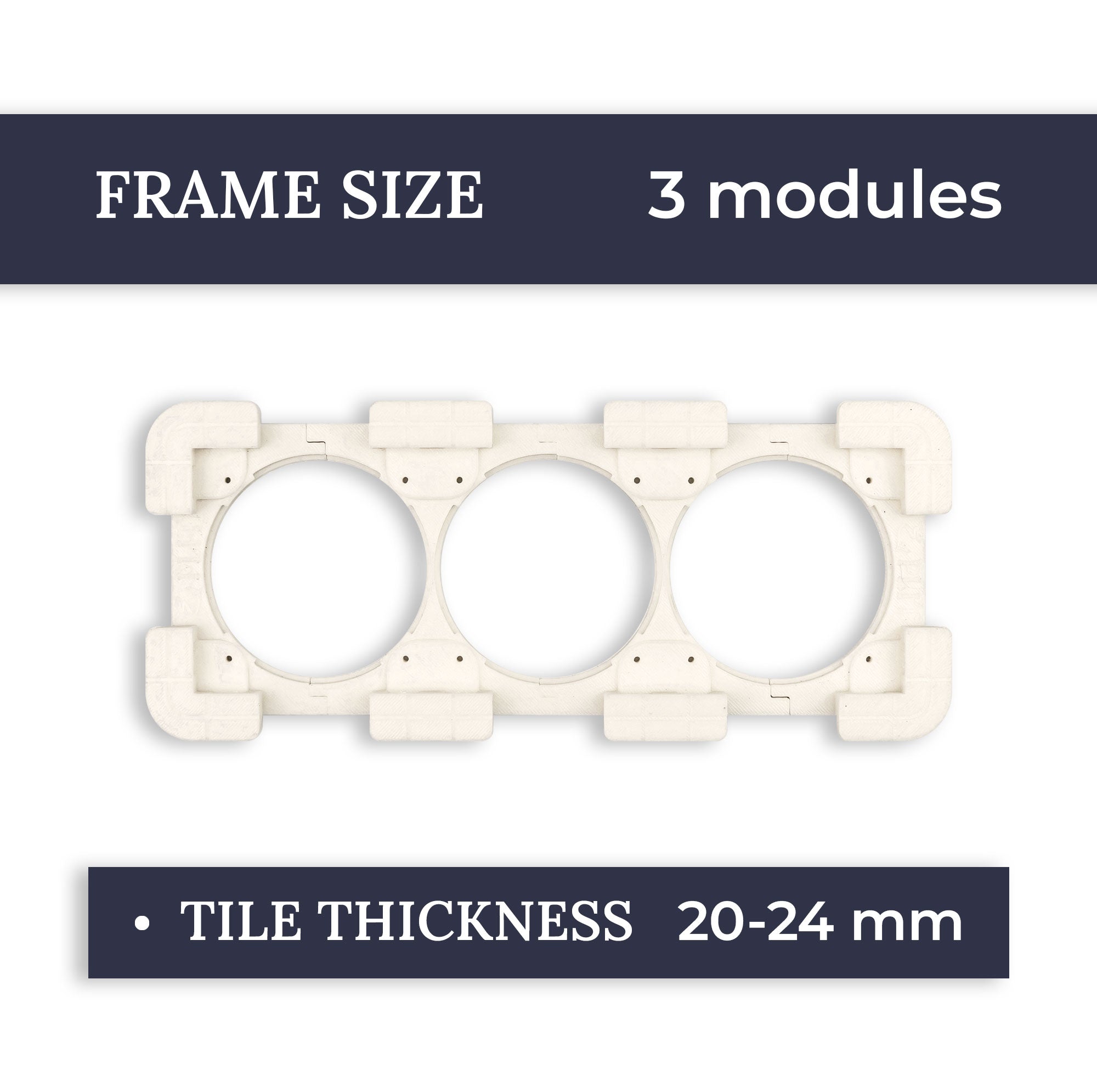

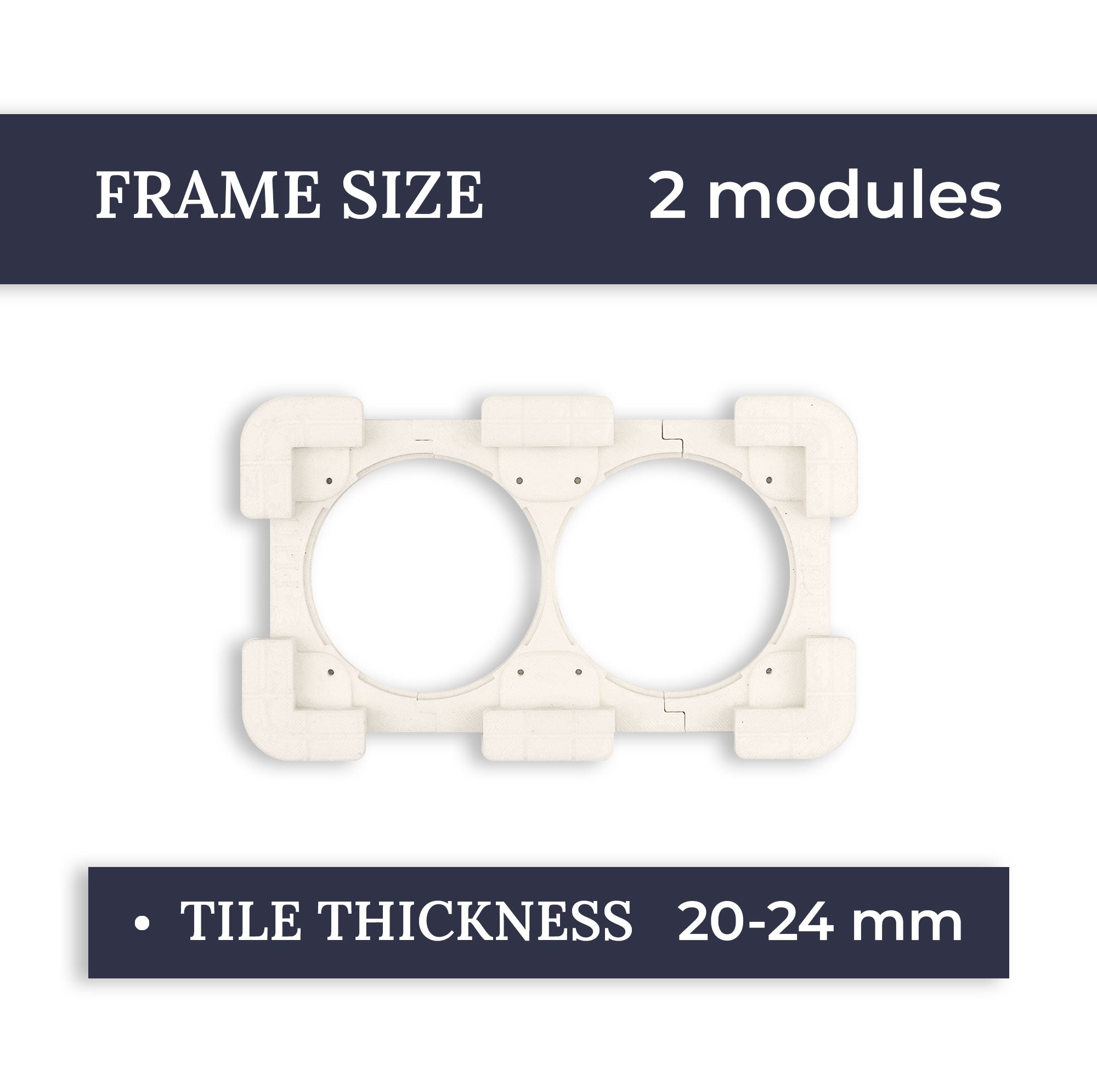

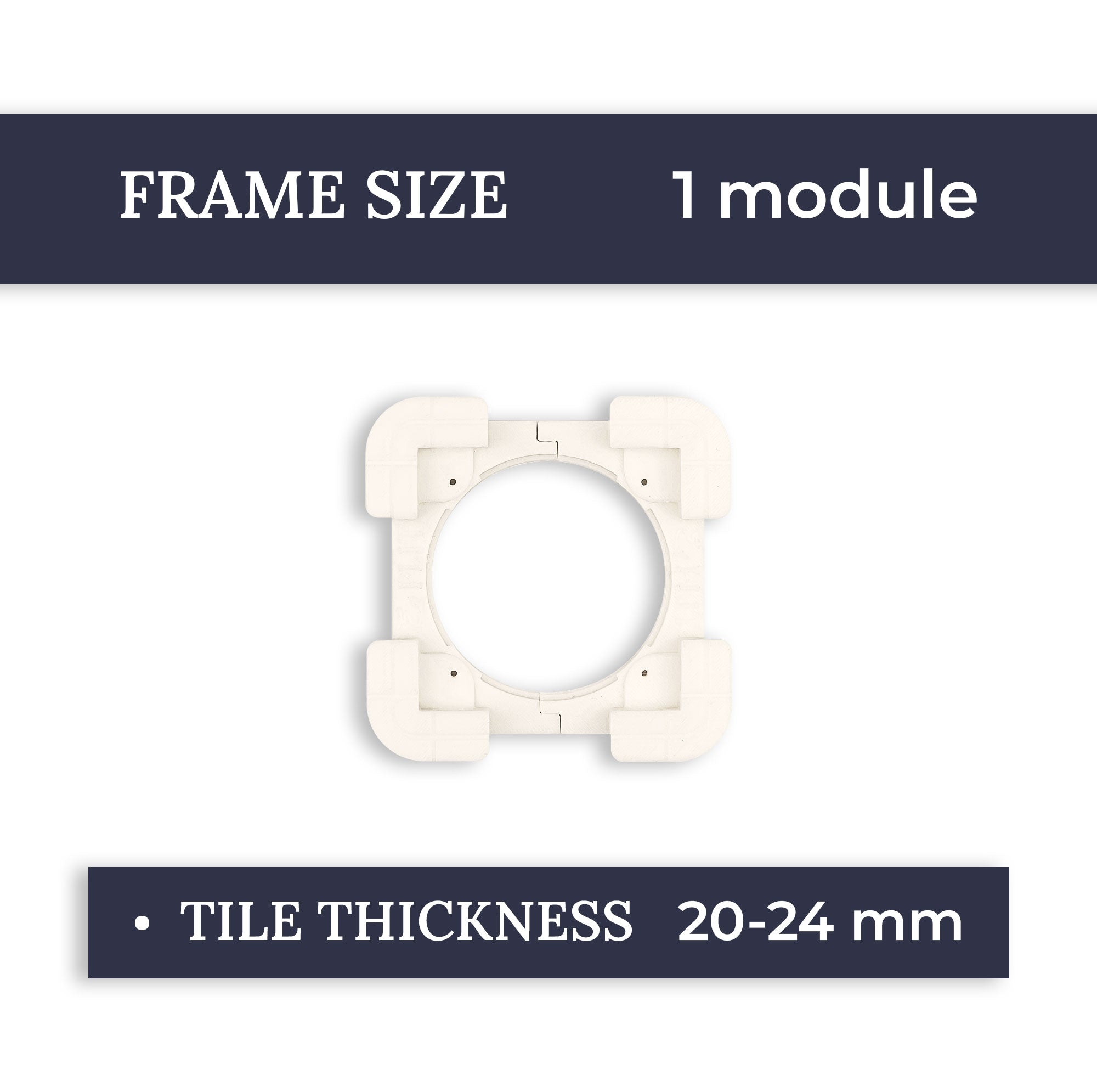

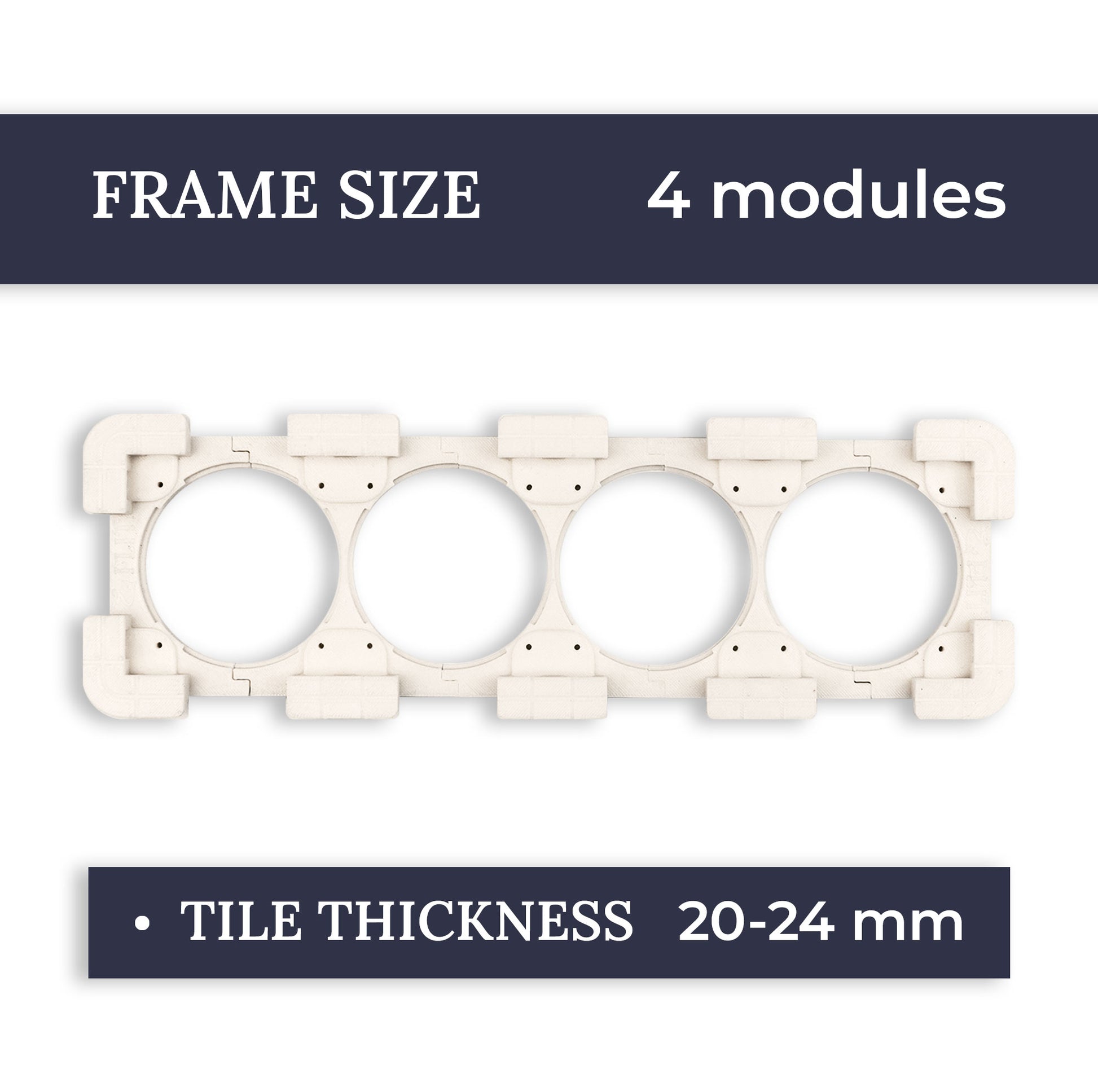

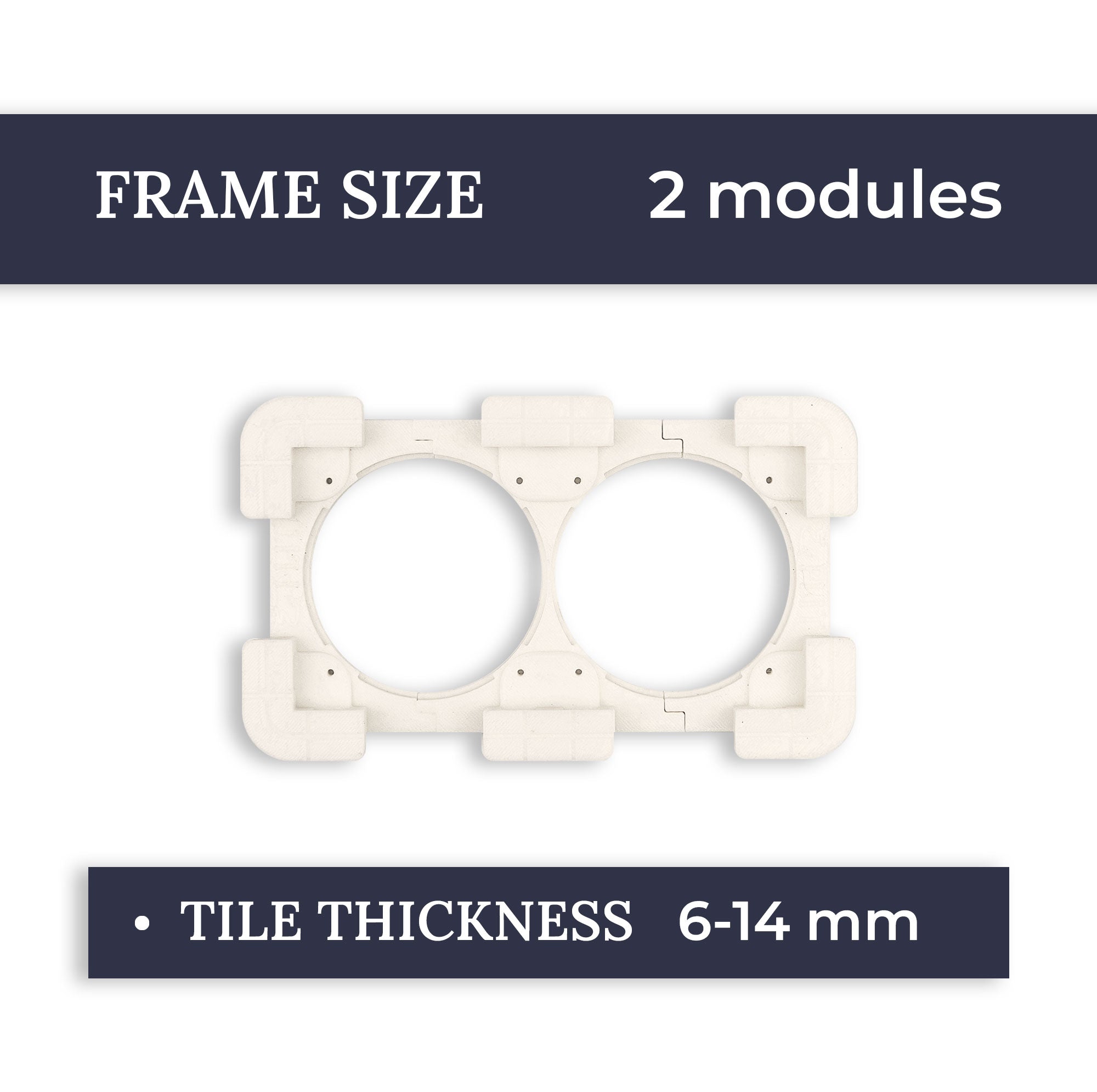

The system offers two frame options depending on tile thickness:

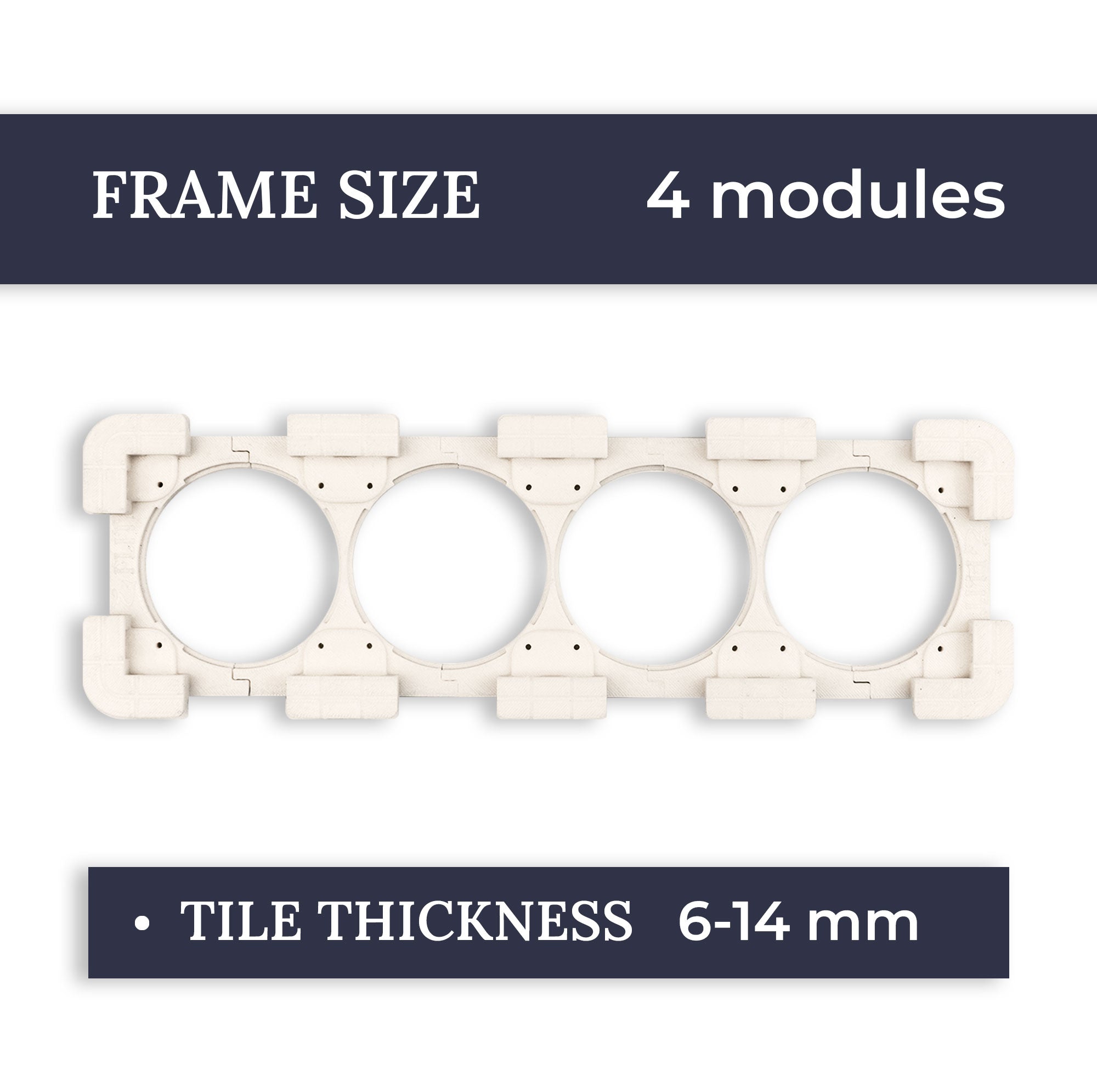

For tiles 6–14 mm

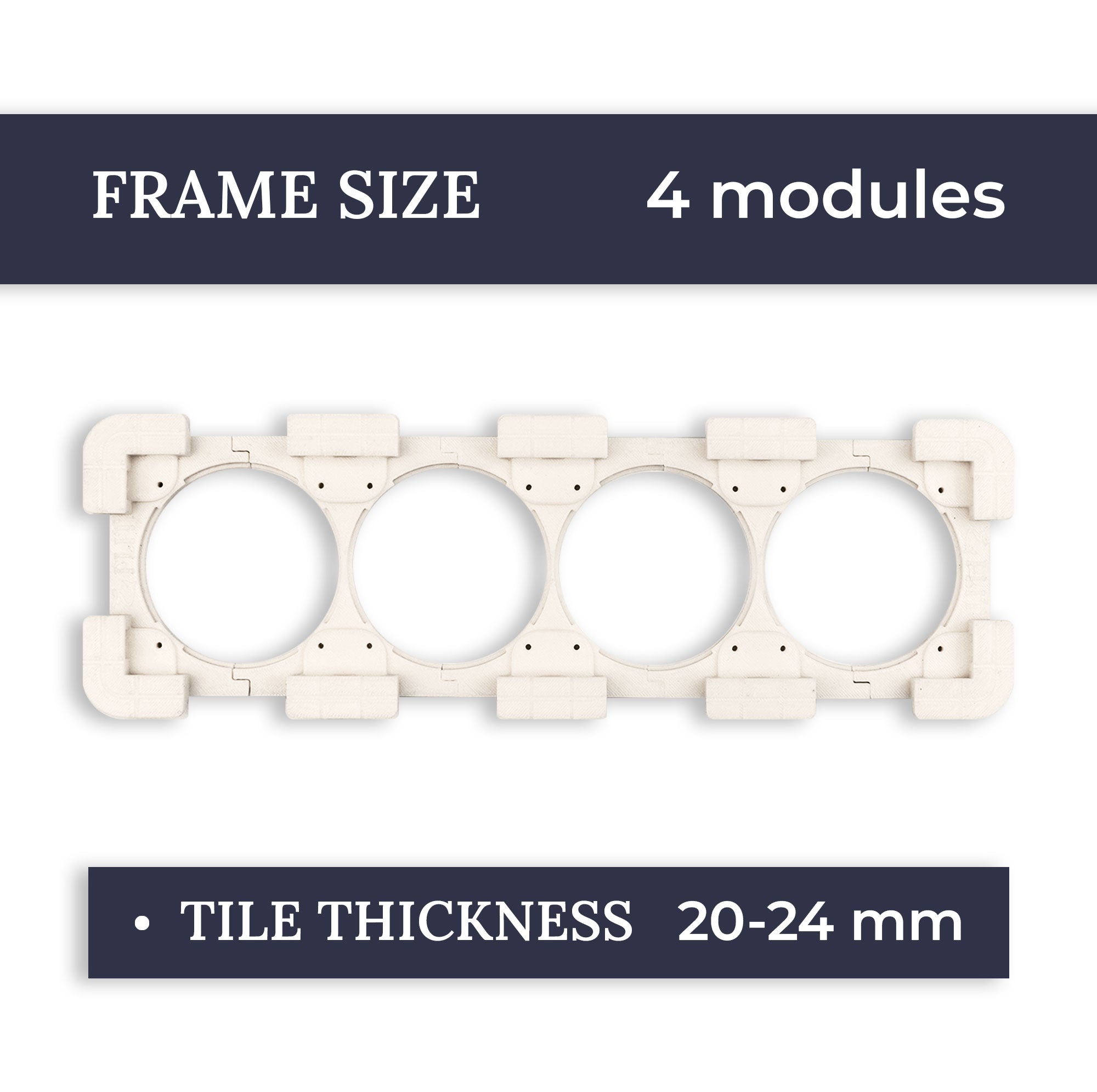

For tiles 20–24 mm
Be sure to select the correct frame when choosing your configuration.

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

  • Standard Delivery (14-21 business days): €15 - €89
  • Standard Delivery + Insurance (14-21 business days): €20 - €94
  • Express Delivery (5-14 business days): €24 - €98

Customs Fees & Import Taxes

Our prices do not include VAT, GST, or other import taxes.
Additional customs fees may apply depending on your location.
You will receive a notification from customs for payment before final delivery.
For any questions regarding shipping, feel free to contact our support team!

Processing Times

Orders are processed within 1-2 business days.
We ship orders Monday through Friday (excluding weekends and holidays).
Please note that processing and shipping are separate steps with different timeframes.

Installation Overview (Socket & Push Switch)

EDPLIT Invisible Socket Outlet & Push Switch System is perfect for modern interiors where aesthetics matter.

Multiple Configurations
Customize your outlet setup—select from various socket types and configurations to suit your electrical requirements.

Socket Specifications
Socket Outlet Type: Type F (Schuko)
Voltage - 220V
Available Colors: White, Beige, Black
By default, the socket outlets come in white.
If you prefer beige or black, please make sure to specify your choice in the order notes.
Mechanisms: Berker*

Swithes Specifications
Rated current 10A, 10 AX, 16 AX.
Available Colors: White only.
Mechanism: Siemens*

Built with safety in mind, all internal mechanisms are certified and meet international safety standards to ensure secure and reliable use.

*Important Note:
EDPLIT is not the original developer or manufacturer of the socket or switch mechanisms themselves. For our installations, we use high-quality, EU certified internal components: Berker mechanisms for sockets, Siemens mechanisms for switches (included in the set). This ensures full compatibility, safety, and long-term performance.

Tools & Tips (Electro)

To create the tile insert, use the included adhesive template to mark the cut-out precisely.

Recommended tools:

Diamond Hole Saw Ø42mm for Socket Installation or Edplit Socket Cutting Kit (can be found in our add-ons).

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone.
Adhesive template:The kit includes adhesive templates
Glue: PU glue

Tile Compatibility & Setup (Electro)

The system is compatible with:
Ceramic tiles (up to 24 mm)
Porcelain tiles (up to 24 mm)

Please note:
The system offers two frame options depending on tile thickness:
For tiles 6–14 mm
For tiles 20–24 mm
Be sure to select the correct frame when choosing your configuration.

Shipping rates

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

  • Standard Delivery (14-21 business days): €15 - €89
  • Standard Delivery + Insurance (14-21 business days): €20 - €94
  • Express Delivery (5-14 business days): €24 - €98

Customs Fees & Import Taxes

Our prices do not include VAT, GST, or other import taxes.
Additional customs fees may apply depending on your location.
You will receive a notification from customs for payment before final delivery.
For any questions regarding shipping, feel free to contact our support team!

Processing Times

Orders are processed within 1-2 business days.
We ship orders Monday through Friday (excluding weekends and holidays).
Please note that processing and shipping are separate steps with different timeframes.

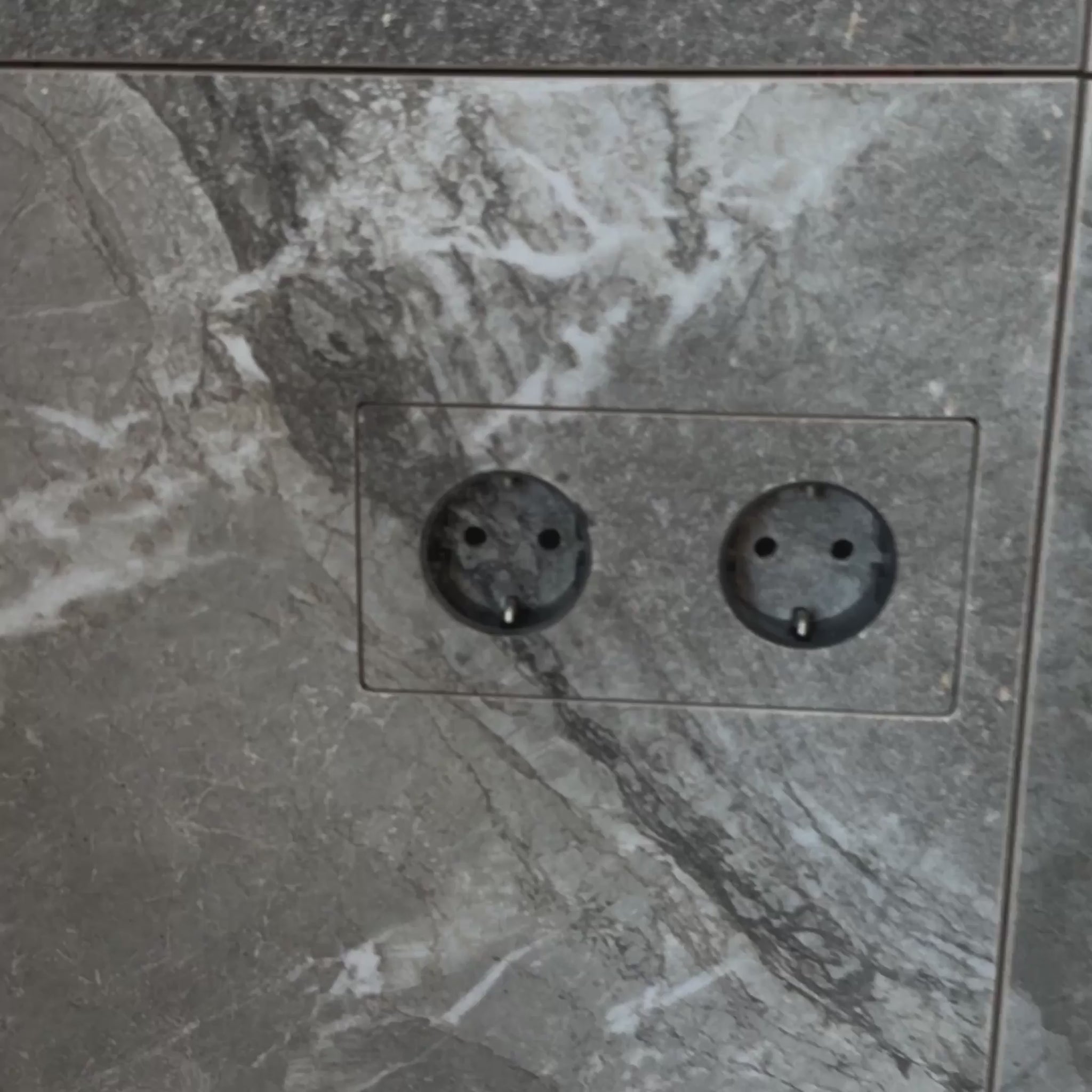

Before After

FAQ

Can I mix switches and sockets?

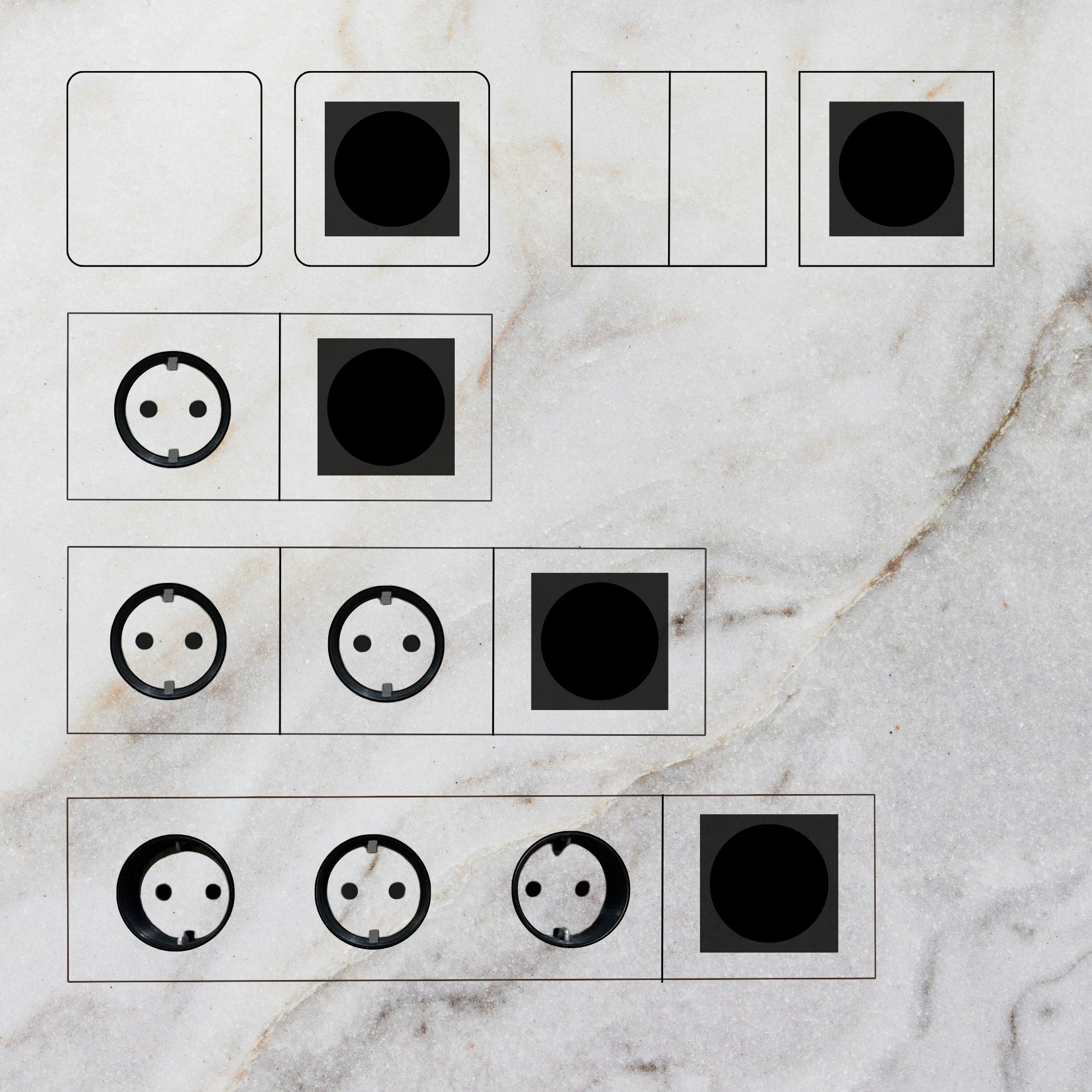

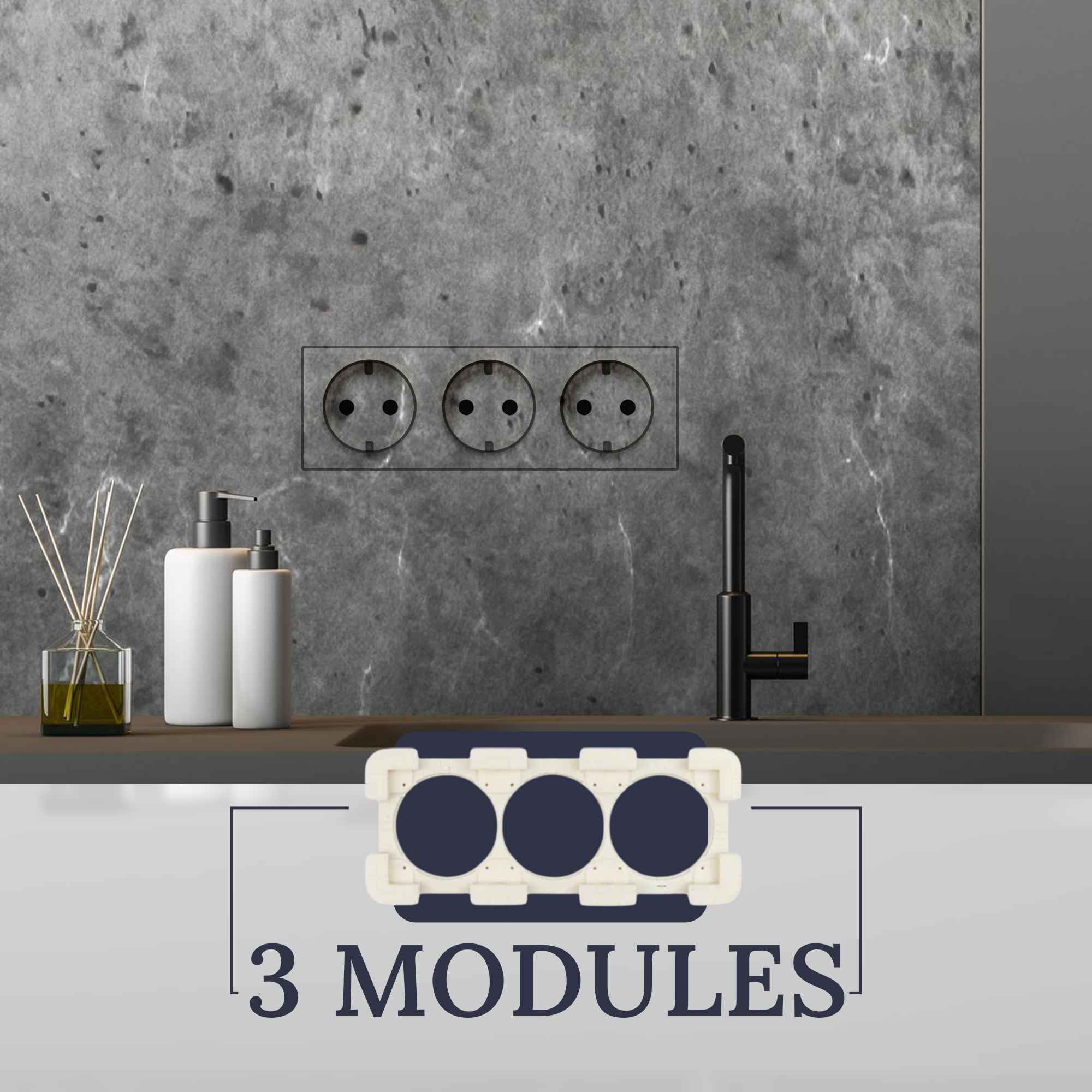

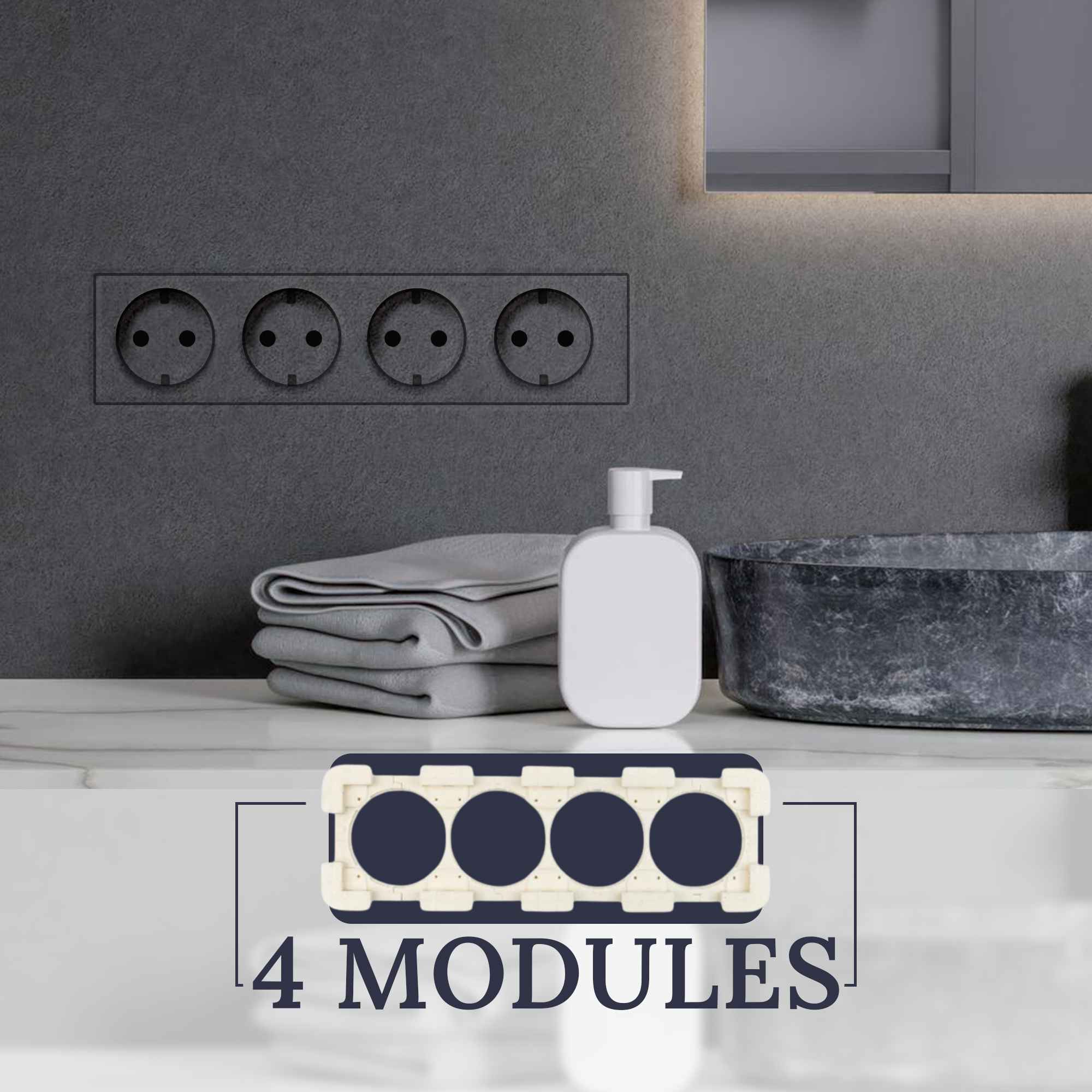

✅ Yes, up to 4 modules in any combination

Is it compatible with any tile?

 ✅ Works with ceramic, porcelain, and stone

Is installation difficult?

✅ No, requires basic tools

Can I adjust after installation?

✅ Yes, without removing tiles
