Edplit Concealed Thermostat

In stock
₴9,900
₴9,900
NEW

Enhance your interiors with the refined and functional EDPLIT Concealed Thermostat Mechanism, designed to seamlessly integrate into minimalistic and contemporary spaces.

Enhance your interiors with the refined and functional EDPLIT Concealed Thermostat Mechanism, designed to seamlessly integrate into minimalistic and contemporary spaces.

Show more Show less

Add-on:

Thermostat Overview

Thermostat Overview

Simple on the outside. Precise underneath.
Clean lines, hidden details, and seamless integration — this is where design meets engineering.
Watch how it's done.

Ready for magic? Click here

Electro - Watch the detailed installation video and demonstration. It feels like magic, but it's pure mechanics.

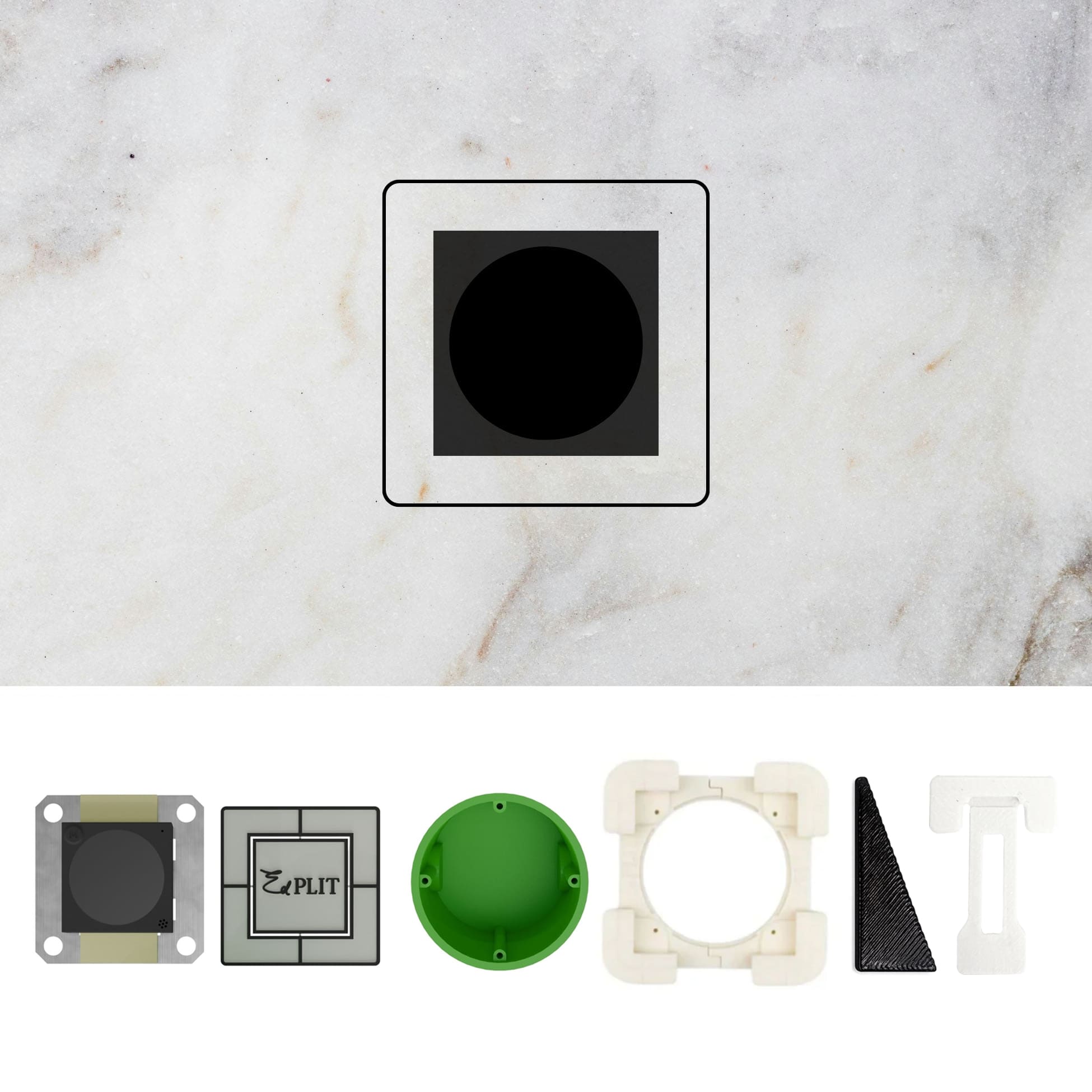

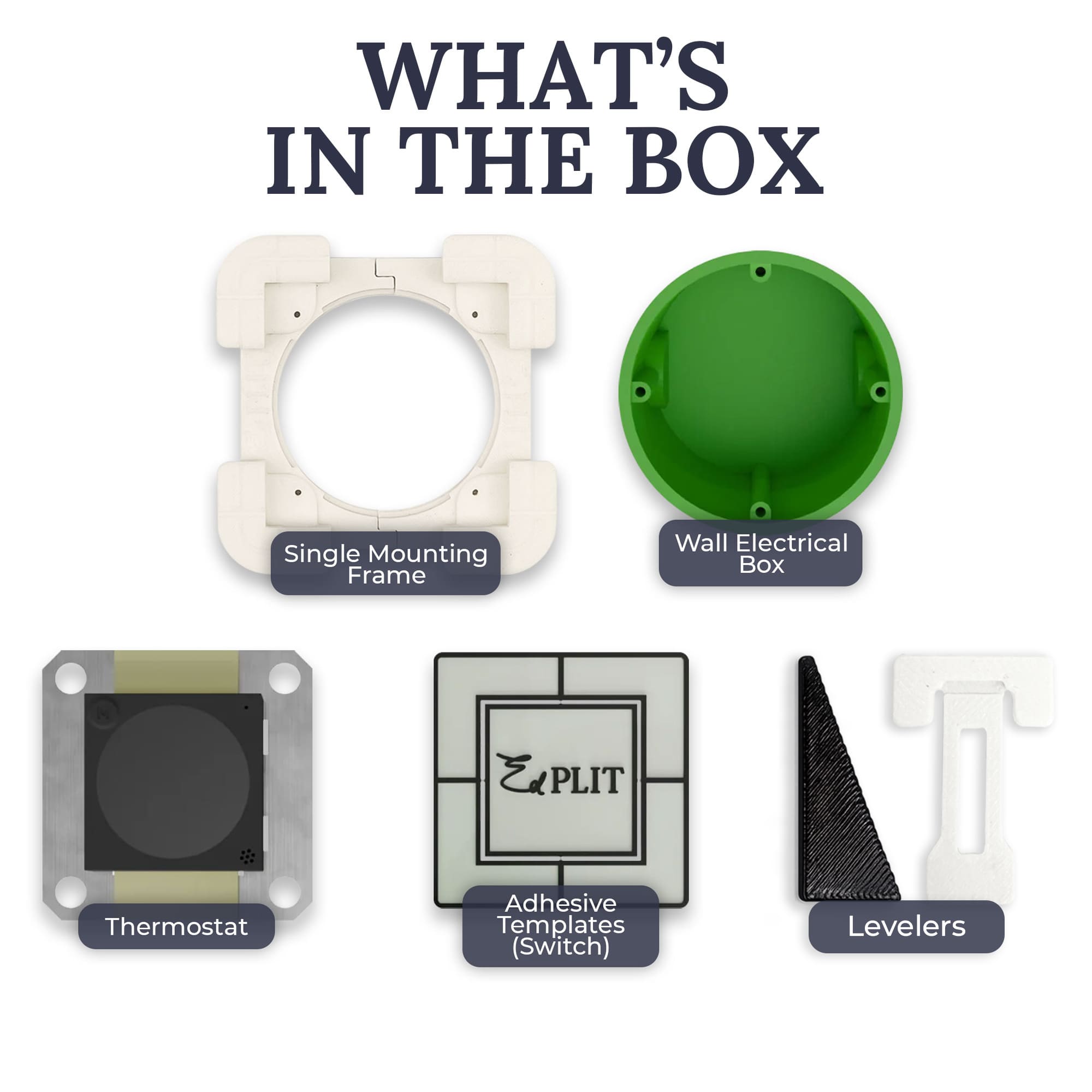

WHAT'S IN THE BOX

Single Mounting Frame

Thermostat

Adhesive Templates (Switch)

Wall Electrical Box

Benefits

Patented Invisible Mounting System

The only solution in its class that allows seamless integration of sockets and switches into the wall, without any visible frames, overlays, or gaps

Effortless Tile-Press Activation

The system is activated with a gentle press directly on the tile surface, delivering a precise and tactile response thanks to its advanced mechanical design

Straightforward Installation and Adjustment

Easily adjust depth and alignment using just a standard screwdriver, available in every toolkit

Proven Reliability

Validated across 1000+ projects with guaranteed functionality and a 1-year warranty

The Edplit Concealed Thermostat Mechanism is designed for seamless and minimalistic interiors. Mounted in the same Edplit frame as switches or sockets, the thermostat becomes part of a unified, elegant composition — without visible mounting parts.

Thermostat Specifications

Type: Touch-sensitive thermostat
Temperature sensor: Built-in
Temperature range: 0–50 °C (step 1 °C)
Display: Touch screen with real-time temperature and mode display
Material: Tempered glass frame, copper contact group
Dimensions: 80 × 80 × 28 mm
Voltage: 110–250 V
Max current: 16 A
Max load: 3500 W
Protection: IP20
Key Features

Scratch- and UV-resistant glass surface
Energy-saving automatic shut-off when target temperature is reached
Japanese relay for reliable and precise switching
NO contact function — heating is only active when needed
Easy concealed installation with Edplit system components
Compatibility with switches and sockets in one frame for maximum design harmony

To create the tile insert, use the included adhesive template to mark the cut-out precisely.

Recommended tools:

Edplit Socket Cutting Kit (can be found in our add-ons).

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone.
Adhesive template:The kit includes adhesive templates
Glue: PU glue

The system is compatible with:
Ceramic tiles (up to 24 mm)
Porcelain tiles (up to 24 mm)

Please note:
The system offers two frame options depending on tile thickness:
For tiles 6–14 mm
For tiles 20–24 mm
Be sure to select the correct frame when choosing your configuration

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

  • Standard Delivery (14-21 business days): €15 - €89
  • Standard Delivery + Insurance (14-21 business days): €20 - €94
  • Express Delivery (5-14 business days): €24 - €98

Customs Fees & Import Taxes

Our prices do not include VAT, GST, or other import taxes.
Additional customs fees may apply depending on your location.
You will receive a notification from customs for payment before final delivery.
For any questions regarding shipping, feel free to contact our support team!

Processing Times

Orders are processed within 1-2 business days.
We ship orders Monday through Friday (excluding weekends and holidays).
Please note that processing and shipping are separate steps with different timeframes.

Installation Overview - Thermostat

The Edplit Concealed Thermostat Mechanism is designed for seamless and minimalistic interiors. Mounted in the same Edplit frame as switches or sockets, the thermostat becomes part of a unified, elegant composition — without visible mounting parts.

Thermostat Specifications

Type: Touch-sensitive thermostat
Temperature sensor: Built-in
Temperature range: 0–50 °C (step 1 °C)
Display: Touch screen with real-time temperature and mode display
Material: Tempered glass frame, copper contact group
Dimensions: 80 × 80 × 28 mm
Voltage: 110–250 V
Max current: 16 A
Max load: 3500 W
Protection: IP20
Key Features

Scratch- and UV-resistant glass surface
Energy-saving automatic shut-off when target temperature is reached
Japanese relay for reliable and precise switching
NO contact function — heating is only active when needed
Easy concealed installation with Edplit system components
Compatibility with switches and sockets in one frame for maximum design harmony

Tools & Tips - Thermostat

To create the tile insert, use the included adhesive template to mark the cut-out precisely.

Recommended tools:

Edplit Socket Cutting Kit (can be found in our add-ons).

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone.
Adhesive template:The kit includes adhesive templates
Glue: PU glue

Compatibility & Setup - Thermostat

The system is compatible with:
Ceramic tiles (up to 24 mm)
Porcelain tiles (up to 24 mm)

Please note:
The system offers two frame options depending on tile thickness:
For tiles 6–14 mm
For tiles 20–24 mm
Be sure to select the correct frame when choosing your configuration

Shipping rates

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

  • Standard Delivery (14-21 business days): €15 - €89
  • Standard Delivery + Insurance (14-21 business days): €20 - €94
  • Express Delivery (5-14 business days): €24 - €98

Customs Fees & Import Taxes

Our prices do not include VAT, GST, or other import taxes.
Additional customs fees may apply depending on your location.
You will receive a notification from customs for payment before final delivery.
For any questions regarding shipping, feel free to contact our support team!

Processing Times

Orders are processed within 1-2 business days.
We ship orders Monday through Friday (excluding weekends and holidays).
Please note that processing and shipping are separate steps with different timeframes.
Termostat Before Termostat After

How It Works

STEP 1

Transferring the Markings

Transfer the markings from the template sticker onto the wall at the desired installation location. Templates can be positioned either vertically or horizontally, depending on the layout.

STEP 2

Preparing the Tools for Cutting Openings

For the socket:

  • Plated diamond drill Ø6 mm – for the pin holes
  • Plated diamond drill Ø42 mm – for the cover hole
  • Disc and milling bits – for cutting the square opening and corners

STEP 3

Preparing the Tile and Mechanisms

 Socket:

  • Glue the socket mechanism to the tile.
    (We recommend using a two-component polyurethane adhesive.)
  • If the tile thickness is between 6 and 12 mm:
  • Sand down the socket frame to 6 mm using the special template included in the kit
  • Also sand the round part of the socket down to 2 mm


Switch:

  • No sanding of the tile is required
  • The switch buttons include adjustment screws that allow precise alignment with the surface of the tile

After adjustment, glue the tile-button onto the plastic mechanism

STEP 4

Wall Installation

Socket:

  • Install the socket by screwing it into the frame that has already been attached to the back of the tile
  • The frame has a thickness adjustment feature, allowing you to align the tile element flush with the main surface
  • Cover and magnets:Install the cover and magnetic elements by gluing them to the base

FAQ

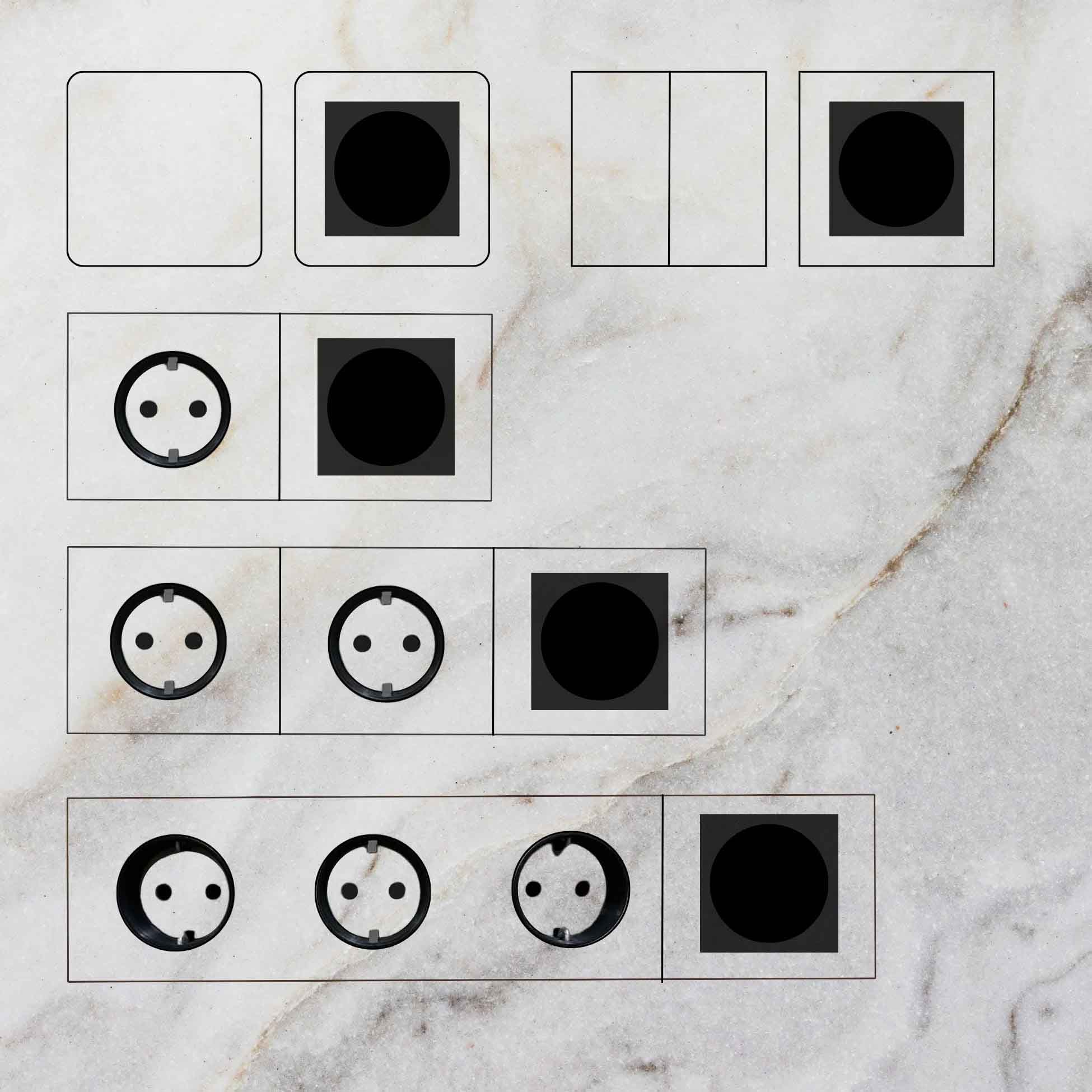

Can i mix switches, sockets with thermostat?

✅ Yes, up to 4 modules in any combination

Is it compatible with any tile?

 ✅ Works with ceramic, porcelain, and stone

Is installation difficult?

✅ No, requires basic tools

Can I adjust after installation?

✅ Yes, without removing tiles
