Pro Tile Cutting Kit

For installers working with tile-integrated systems, choosing the right cutting and finishing tools is essential for achieving precise results.

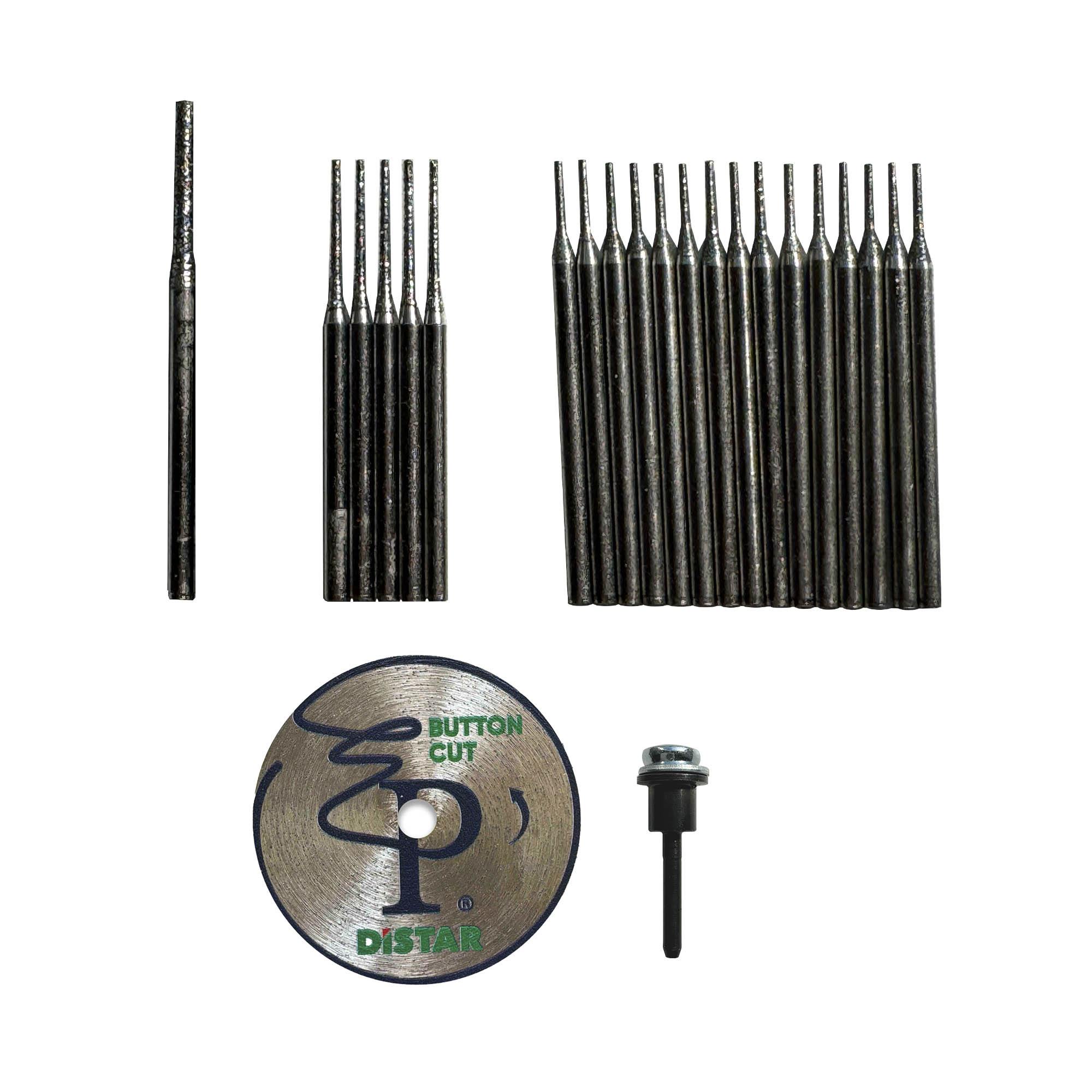

The set includes:

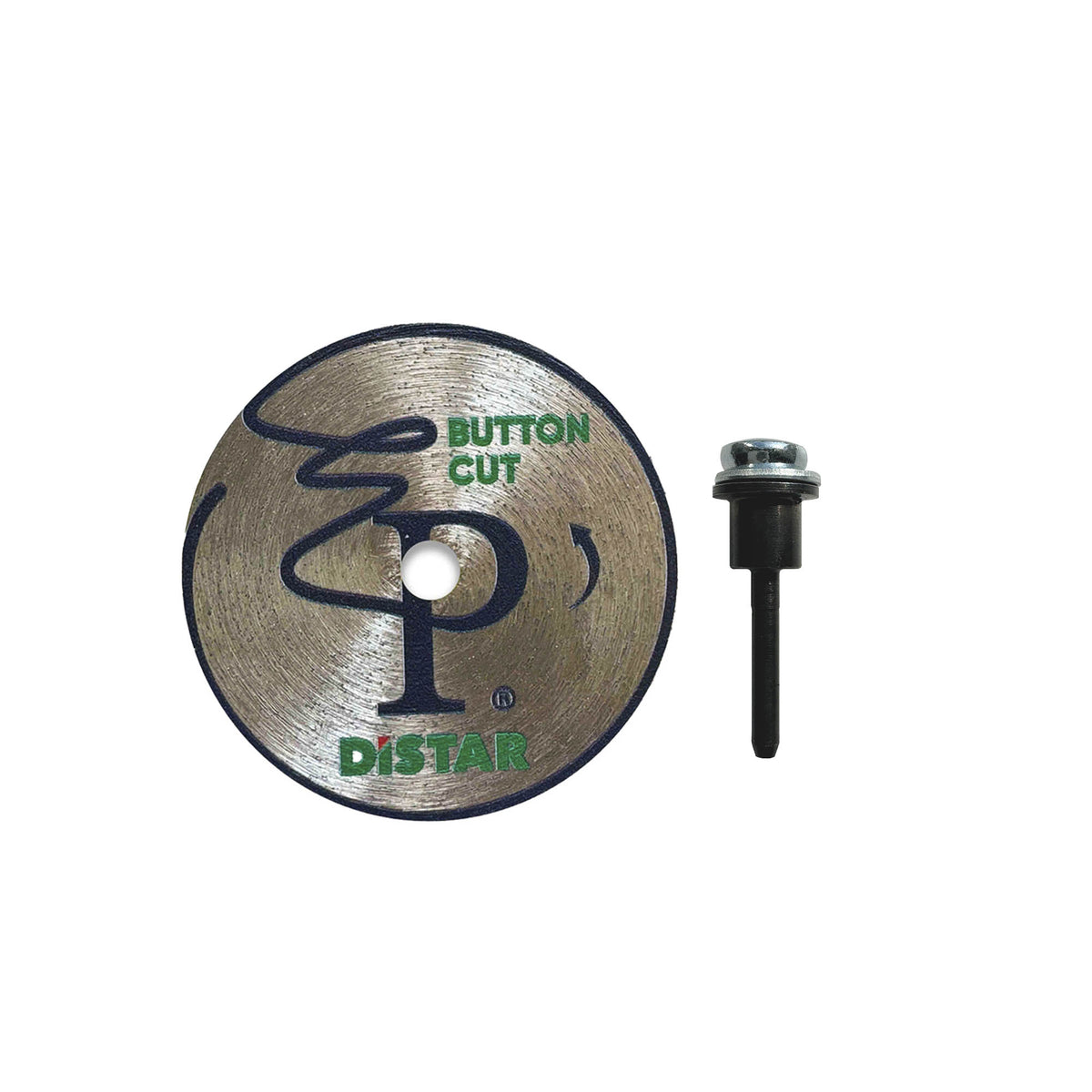

• Precision Cut Disc 50 mm

The Precision Cut Disc is a professional diamond cutting disc developed by DISTAR in collaboration with EDPLIT for precise, clean cut-outs in ceramic, porcelain, and stoneware tiles. Its durable diamond coating and ultra-thin 0.8 mm cutting edge ensure smooth, accurate results while minimizing chipping. Designed for high-precision tile work, the disc produces clean, straight cuts that require minimal or no additional finishing. This helps reduce processing time, improve productivity, and speed up installation. When used with EDPLIT cutting templates, the Precision Cut Disc delivers exceptional accuracy for cut-outs required for concealed bathroom solutions and tile-integrated products.

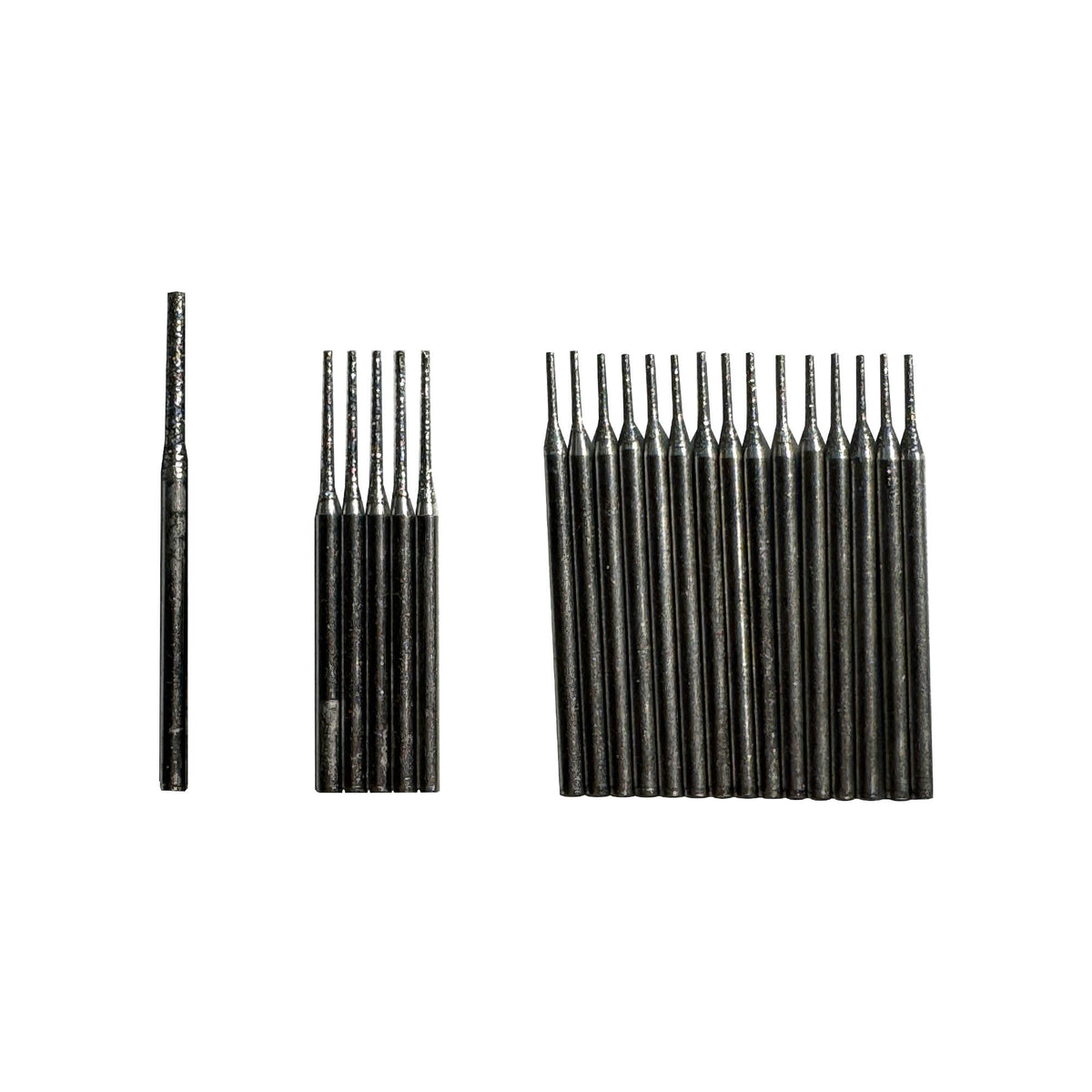

• Diamond Drill Bits
  Ultra-thin diamond drill bits are designed for precise drilling in hard materials, including ceramic tiles, porcelain, and stoneware. Their diamond-coated tips provide accurate holes with clean edges and minimal chipping. Suitable for detailed tile work, these drill bits help achieve consistent results when preparing openings for concealed bathroom solutions, electrical sockets, switches, and other tile-integrated products.

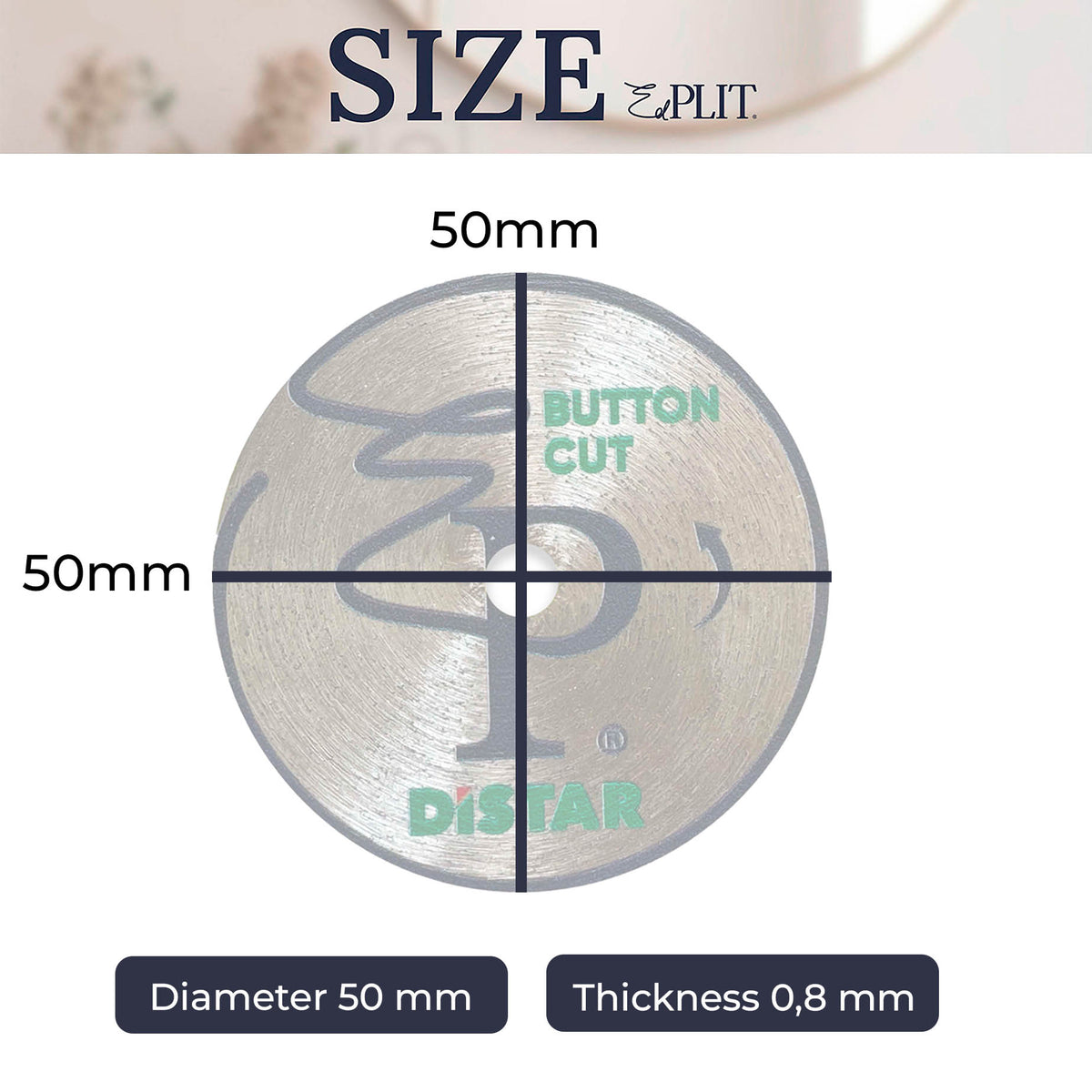

Technical Specifications Precision Cut Disc

• Developed by DISTAR in collaboration with EDPLIT
• Type: Diamond cutting disc
• Diameter: 50 mm
• Blade thickness: 0.8 mm
• Provides clean, precise cuts with minimal chipping
• Improves cutting efficiency and productivity
• Minimizes the need for additional edge finishing
• Compatible with EDPLIT cutting templates


Technical Specifications Diamond Drill Bits

Quantity: 21 drill bits

• 1 wide diamond bit
• 15 smallest diamond bits
• 5 long diamond bits

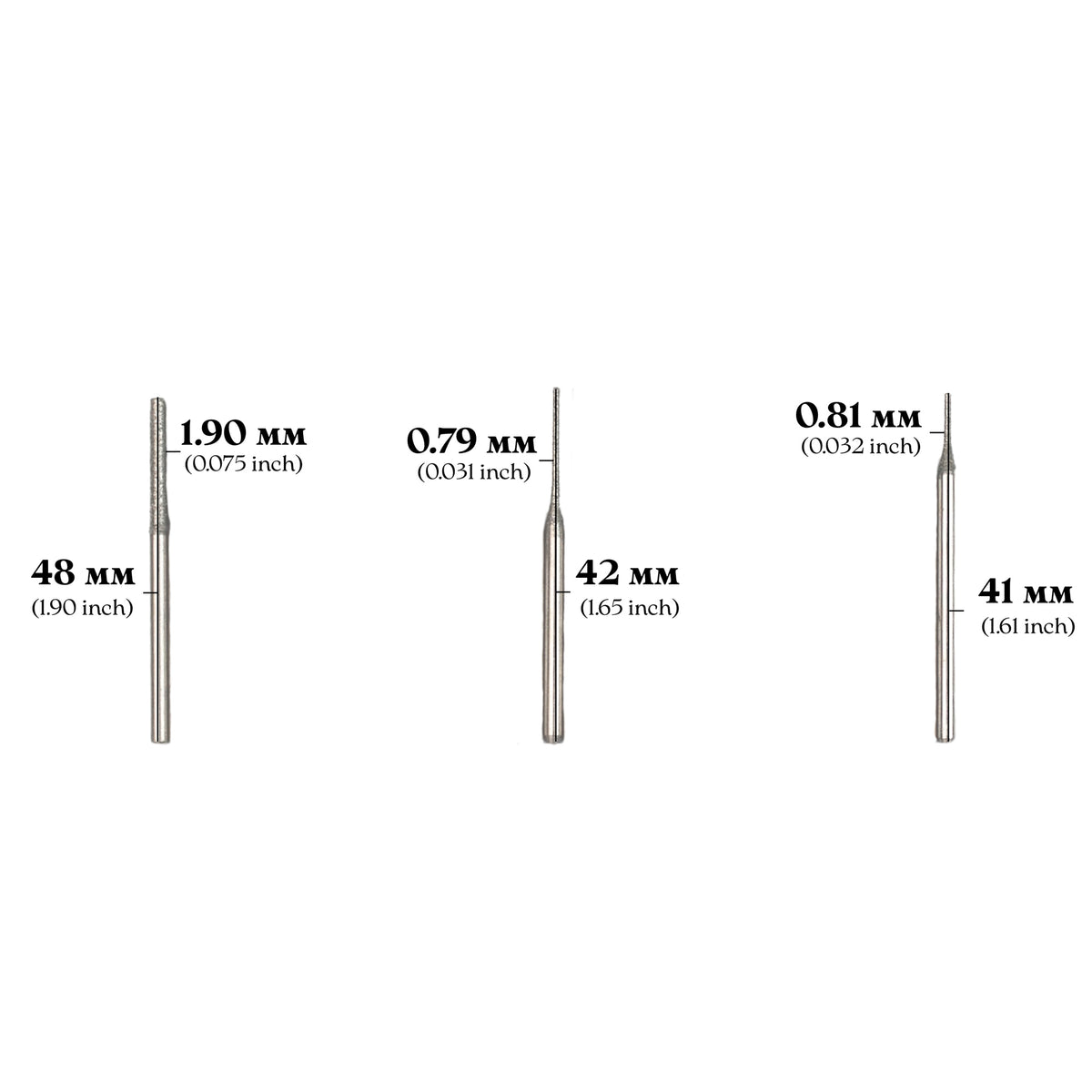

Dimensions:

• Smallest drill bits: Length: 41 mm; diameter: 0.81 mm. Designed to remove the top ceramic layer and create a shallow recess of approximately 0.4–0.5 mm.
• Long drill bits: Length: 42 mm; diameter: 0.79 mm. Designed for deeper recesses in tile.
• Wide diamond bit: Length: 48 mm; diameter: 1.90 mm. Used for smoothing and fine-tuning the recessed area.

The Pro tile cutting kit are suitable for use with:
Ceramic and porcelain tiles, natural stone

Usage recommendations:
Use water cooling to prevent overheating
Apply gentle pressure to avoid tool damage

Compatible with: Tile engraver: standard rotary engraver, milling cutter, or the recommended EDPLIT Tile Engraver for precise, clean cuts on ceramics, porcelain, and stone.
Tips: Work with the diamond disk slowly and carefully, applying gentle pressure and keeping it cool with water to prevent overheating and breakage
