Name: Botón de descarga oculto Edplit Invisi Tile Touch M2
Brand: EdPlit
SKU: E10019
Price: 10500.0 UAH
Availability: InStock

Simple on the outside. Precise underneath.
Clean lines, hidden details, and seamless integration — this is where design meets engineering.
Watch how it's done.

Ready for magic? Click here

Watch the detailed installation video and demonstration. It feels like magic, but it's pure mechanics.

WHAT'S IN THE BOX

Design Box
Plate M2
Magnetic Mounting Corners
Fixing Ears for Sigma/Tece/Alcaplast/Omega
Fixing Ears for Delta
Adhesive cutting template M2
Pushers for Sigma/Alcaplast/Omega
Sanding Paper (Set with consumables)
Tile Sanding Disc + Holder (Set with consumables)
Tile Cutting Disc + Holder (Set with consumables)
Drill Bits (only set with consumables)
Pushers for Tece/Delta
Adjastment tool
Removal hook
Fixing Screws

WHY CHOOSE US?

Proven durability

Proven durability tested in 1000+ projects, 10-year warranty

Easy installation & adjustment

designed for fast setup using the included adjustment tool and standard tiling equipment

Gentle press activation

the system is activated by lightly pressing the tile, without visible buttons

Fully concealed

blends seamlessly with ceramic, porcelain, or stone surfaces

Patented invisible system

the first fully integrated and patented flush button behind tiles

Compatible with top installation systems

works with Geberit Sigma, Delta, Omega, TECE, Jomotech, OLI, Alcaplast, ViegA, TOTO frames

Features & Compatibility (M2)
Tools & Tips (Edplit Button)
Tile Compatibility & Setup
Shipping and Manufacturing

Hidden Flush Button Edplit Invisi Tile Touch M2 is designed for seamless concealed installation behind wall tiles.

Compatible with the most popular concealed flushing systems:

Geberit Sigma
Geberit Delta
Geberit Omega
AlcaPlast
TECE
OLI
JomoTech
Viega
TOTO

The system is easy to adjust and service after installation.

The kit includes a mounting frame, an adjustment tool for button positioning, a hook tool for safe tile insert removal, and a precise adhesive cutting template (2 adhesive templates: One for the actual tile cutting, One as a spare or for training purposes. This allows you to practice or make adjustments if needed).

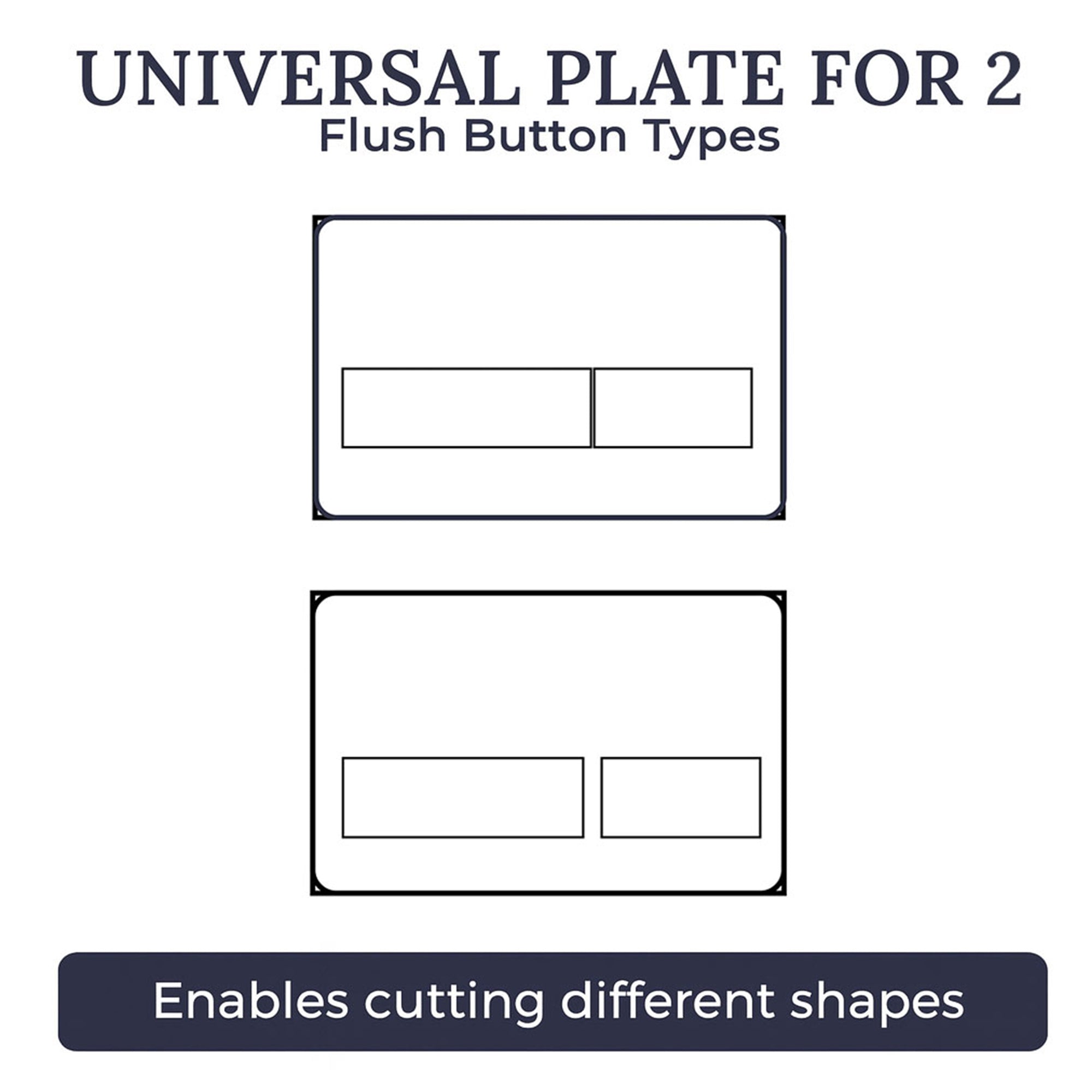

To create the tile insert, use the included adhesive template to mark the cut-out precisely. The insert will become the visible flush button, so accurate cutting is essential.

Recommended tools:

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone. (If you plan to use waterjet cutting, please contact our manager and we will provide you with the cutting files.)
Glue: PU glue

The system is compatible with:

Ceramic tiles up to 12 mm
Porcelain tiles up to 12 mm

Edplit Hidden Flush Button system is fully adjustable to fit various project needs:

Supports tile thickness up to 12 mm
Frame and push rods can be adjusted without special tools
Button position and sensitivity can be fine-tuned after tile installation
Quick and simple calibration via the button opening

Please note that the button cannot be turned over and installed vertically.

Manufacturing Time - 4-5 business days

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

Standard Delivery (14-21 business days): €15 - €89
Standard Delivery + Insurance (14-21 business days): €20 - €94
Express Delivery (5-14 business days): €24 - €98

Customs Fees & Import Taxes

Our prices do not include VAT, GST, or other import taxes.
Additional customs fees may apply depending on your location.
You will receive a notification from customs for payment before final delivery.
For any questions regarding shipping, feel free to contact our support team!

Processing Times

Orders are processed within 1-2 business days.
We ship orders Monday through Friday (excluding weekends and holidays).
Please note that processing and shipping are separate steps with different timeframes.

Features & Compatibility (M2)

Hidden Flush Button Edplit Invisi Tile Touch M2 is designed for seamless concealed installation behind wall tiles.

Compatible with the most popular concealed flushing systems:

Geberit Sigma
Geberit Delta
Geberit Omega
AlcaPlast
TECE
OLI
JomoTech
Viega
TOTO

Tools & Tips (Edplit Button)

Tile Compatibility & Setup

Edplit Hidden Flush Button system is fully adjustable to fit various project needs:

Supports tile thickness up to 12 mm
Frame and push rods can be adjusted without special tools
Button position and sensitivity can be fine-tuned after tile installation
Quick and simple calibration via the button opening

Please note that the button cannot be turned over and installed vertically.

Shipping and Manufacturing

Manufacturing Time - 4-5 business days

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

Standard Delivery (14-21 business days): €15 - €89
Standard Delivery + Insurance (14-21 business days): €20 - €94
Express Delivery (5-14 business days): €24 - €98

How It Works

STEP 1

Hidden Flush Button

This recessed button is designed for seamless integration into walls or concealed toilet systems. The opening can be cut manually or with a water jet, making installation straightforward. Ideal for use in both new construction and existing spaces without complications.

STEP 2

Invisible Sockets / Switches

Designed for flush mounting into walls, these sockets and switches fit standard electrical boxes. Their installation prioritizes safety and reliability, ensuring a clean and modern finish. Perfect for upgrading existing setups or installing in new projects.

STEP 3

Fan Systems

This system allows you to hide ventilation fans for a streamlined and aesthetically pleasing appearance. While installation is relatively simple, it is limited to new construction projects only, as retrofitting existing fans with concealed units is not feasible.

STEP 4

Access Hatch

Provides an elegant way to hide access points while maintaining easy reach to plumbing and electrical components. Installation is efficient and practical, making it suitable for both fresh builds and renovation projects.

STEP 5

Hidden Towel Holder

A minimalist and elegant towel hook designed for effortless mounting. It fits seamlessly into both new builds and already finished rooms, offering a stylish solution without sacrificing convenience.

Complete your project
with the Edplit Bundle:

Flush Button + Invisible Socket + Invisible Switch — designed for seamless
integration and installation.

Tile cutting discs and bathroom fan installation tools – CutMaster Set

EdPlit

CutMaster Set: Kit para cortar azulejos e instalar ventiladores de baño

EdPlit

Sierra de corona de diamante de Ø42 mm para instalación de enchufes

EdPlit

Botón de descarga oculto Edplit Invisi Tile Touch M2

FAQ

Is it easy to install?

Yes. The system comes with a cutting template, adjustment tool, and video guide. The installer needs basic tools and 1–2 hours.

Can I service it without removing tiles?

Yes. The system is designed to allow access behind the flush plate, enabling maintenance without tile removal.

What tile thickness is supported for installation?

The system is designed for tiles up to 12 mm thick. The exception is the M5 model, in which the thickness of the tile is up to 20 mm.
Thanks to the adjustable mounting frame and push rods, the flush button can be precisely aligned to match the tile surface, ensuring seamless integration and reliable operation.

How should tiles be cut for installation?

Use the provided adhesive template to mark the cut precisely. Tiles can be cut using an angle grinder, waterjet, or Edplit diamond tools. For best results, we recommend using professional tools designed for precise tile work see our tile cutting tools collection. A step-by-step video guide is included.

What does “with or without consumables” mean?

Consumables are additional materials required during installation but are not part of the main product.These may include drill bits, cutting and grinding discs, and sandpaper.Many installers already have these tools, so we offer options both with and without consumables.

Can I install EDPLIT hidden flush plate myself or do I need a professional?

Yes, installation can be done yourself if you have basic experience with tile cutting and installation.Each product includes step-by-step instructions to guide you through the process. If you want a more detailed understanding, you can follow our tile cutting course for concealed installation systems.

Can it be installed with large-format tiles?

Yes! Absolutely. On a tile of this format, the product will look aesthetically pleasing and modern.

Which materials are EDPLIT flush buttons compatible with?

Tiles, porcelain stoneware, stone, chipboard, medium density fiberboard.Other materials: it is difficult to give a definite answer, it depends on many factors. Please contact us before placing an order.
