Edplit skjult viftemonteringssystem

Name: Edplit skjult viftemonteringssystem
Brand: EdPlit
SKU: E30003
Price: 5900.0 UAH
Availability: InStock

På lager

₴7,900

NEW

This product is a concealed mounting system that allows you to integrate a standard axial or duct fan discreetly into your bathroom or toilet space.

Please Note:
This product is a mounting system only.
The fan is not included and should be selected separately based on your airflow and noise requirements.

Vis mer

Størrelser: 150 mm

Fan System Size Overview

100 mm
125 mm
150 mm

Tillegg:

100 mm

125 mm

150 mm

Simple on the outside. Precise underneath.
Clean lines, hidden details, and seamless integration — this is where design meets engineering.
Watch how it's done.

Ready for magic? Click here

Fan - Watch the detailed installation video and demonstration. It feels like magic, but it's pure mechanics.

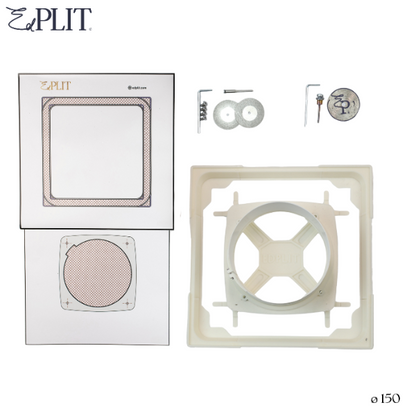

WHAT'S IN THE BOX

Mounting Frame

Fixing Elements

Fan Lock

Holder

Adhesive Templates fan

Tile Cutting Disc + Holder

Tile Sanding Disc + Holder

Fixing Screws and the Adjustment Tool

Corner Fixators

WHY CHOOSE EDPLIT FAN?

Proven durability

Proven durabilitytested in 500+ projects, 10-year warranty

Easy installation & adjustment

designed for fast setup using the included adjustment tool and standard tiling equipment

Gentle press activation

the system is activated by lightly pressing the tile, without visible buttons

Fully concealed

blends seamlessly with ceramic, porcelain, or stone surfaces

Patented invisible system

the first fully integrated and patented flush button behind tiles

Compatible with top installation systems

works with Geberit Sigma, Delta, Omega, TECE, Jomotech and OLI frames

Fan System Overview (full set)
Tools & Tips (EdPlit Fan System)
Fan System Compatibility
Shipping rates

A modular installation system that enables concealed mounting of fans with diameters of 100 mm, 125 mm, or 150 mm. It allows full tiling, leaving only a subtle airflow gap, while ensuring access for maintenance if needed.

Available Sizes:
100 mm — ideal for guest toilets or compact powder rooms
125 mm — suitable for medium bathrooms or rooms up to 8 m²
150 mm — perfect for larger bathrooms or spaces up to 12 m²

Included in the Set:
Concealed mounting elements
Installation hardware
1 diamond cutting disc and 2 diamond sanding discs.
(Fan not included)

To create the tile insert, use the included adhesive template to mark the cut-out precisely.

Recommended tools:

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone.
Adhesive template:The kit includes adhesive templates
Glue: PU glue

Edplit Concealed Fan Mounting System is fully adjustable to fit various project needs:

The system is compatible with:
Ceramic tiles up to 12 mm
Porcelain tiles up to 12 mm

Frame can be removed without special tools
