By EdPlit

Skjult spyleknapp EDPLIT M1

In stock
Regular price ₴14,900
Regular price Sale price ₴14,900
NEW

A mechanical system for installing a fully invisible flush button behind the tile. The set includes the flush mechanism, adjustment tools, all components required for installation and consumables for cutting.
Compatible with Geberit Sigma, Delta, Omega (front installation only), TECE, Jomo Tech, and OLI installation systems.

A mechanical system for installing a fully invisible flush button behind the tile. The set includes the flush mechanism, adjustment tools, all components required for installation and consumables for cutting.
Compatible with Geberit Sigma, Delta, Omega (front installation only), TECE, Jomo Tech, and OLI installation systems.

Show more Show less
Installasjonstype: 5 i 1 (Sigma/Omega/AlcaPlast/Delta/Tece)
size chart Type Overview

Add-on:

Type Overview

5 in 1 (Sigma/Omega/AlcaPlast/Delta/Tece)
Geberit Sigma/Omega/AlcaPlast
Geberit Delta
Jomotech
Tece
OLI

Simple on the outside. Precise underneath.
Clean lines, hidden details, and seamless integration — this is where design meets engineering.
Watch how it's done.

Ready for magic? Click here

Watch the detailed installation video and demonstration. It feels like magic, but it's pure mechanics.

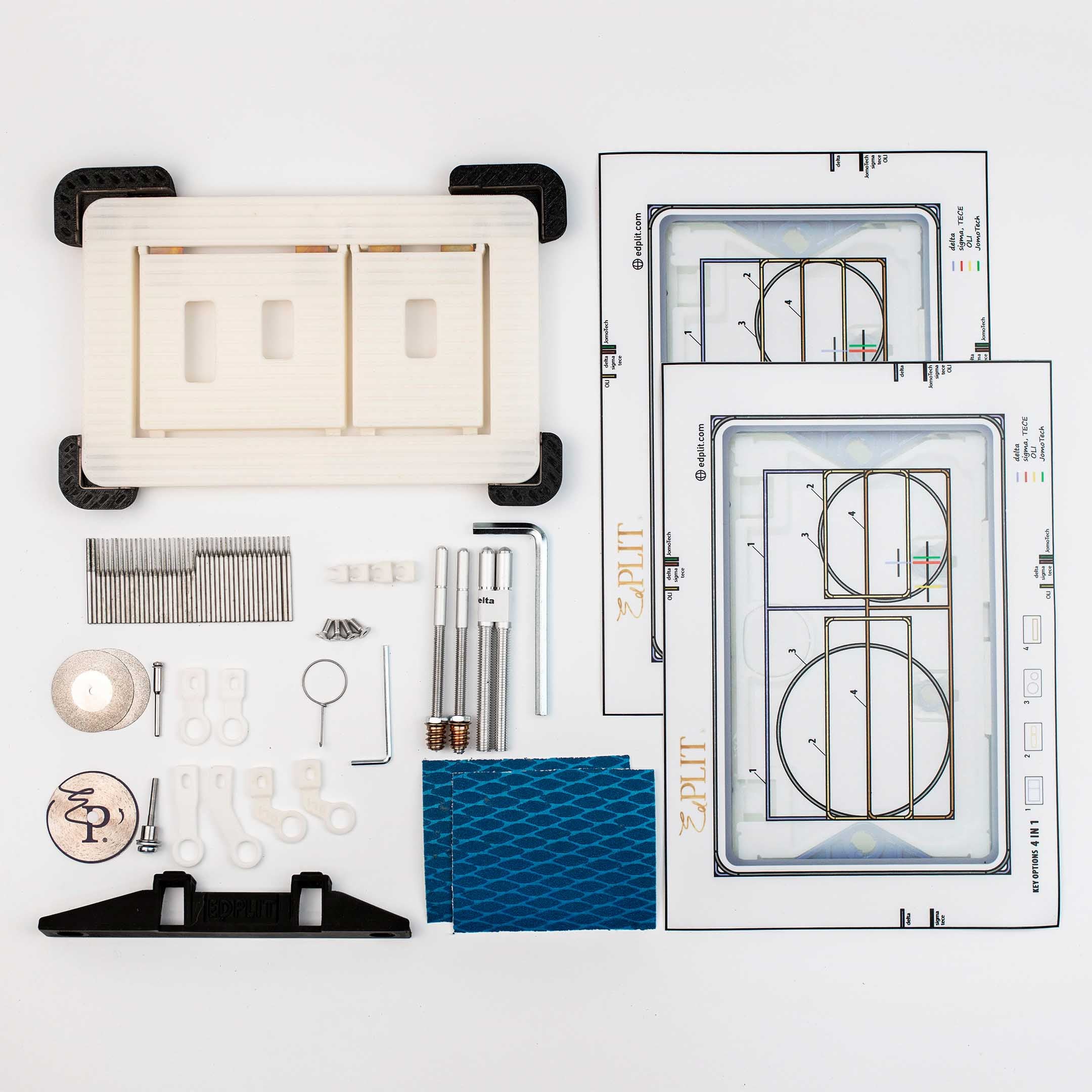

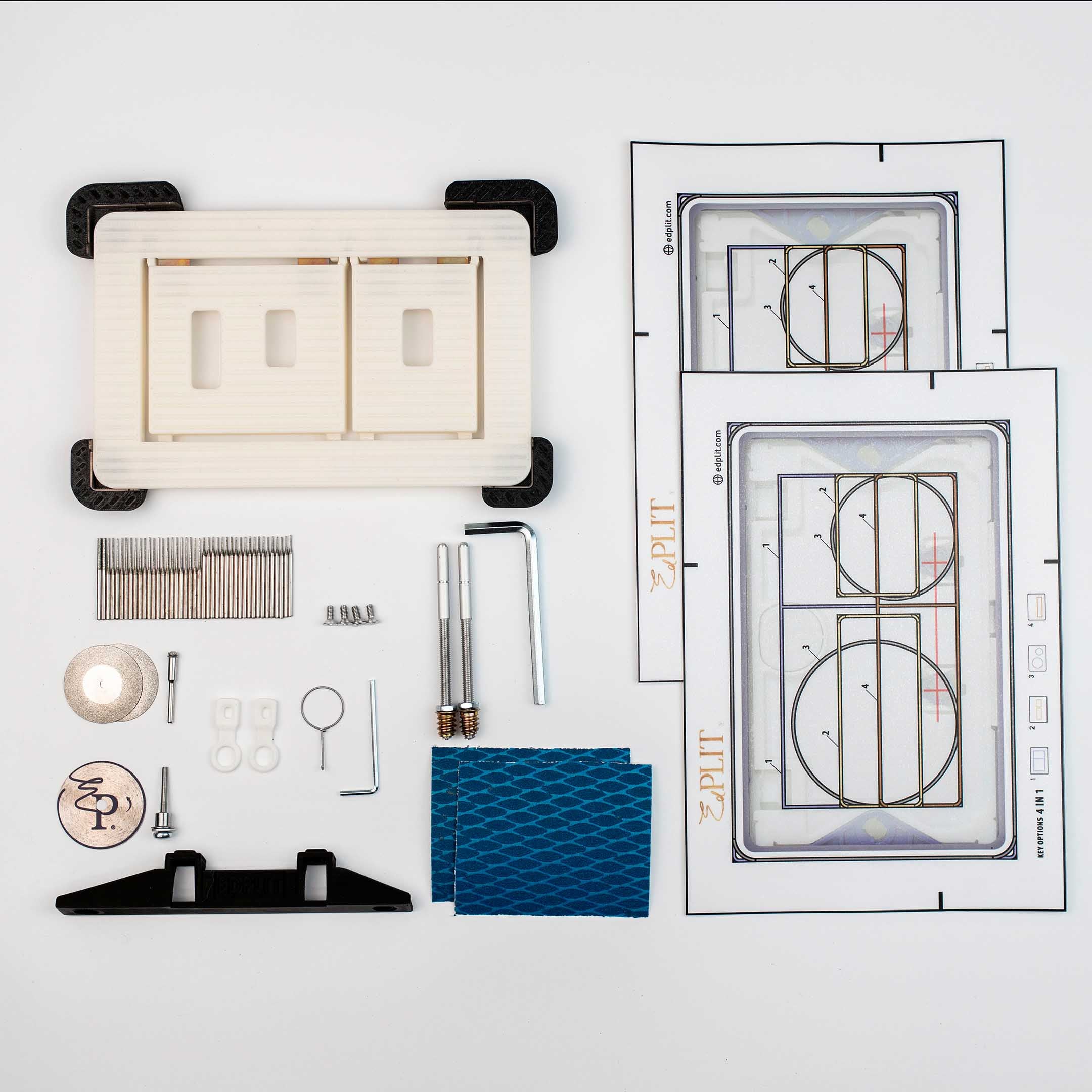

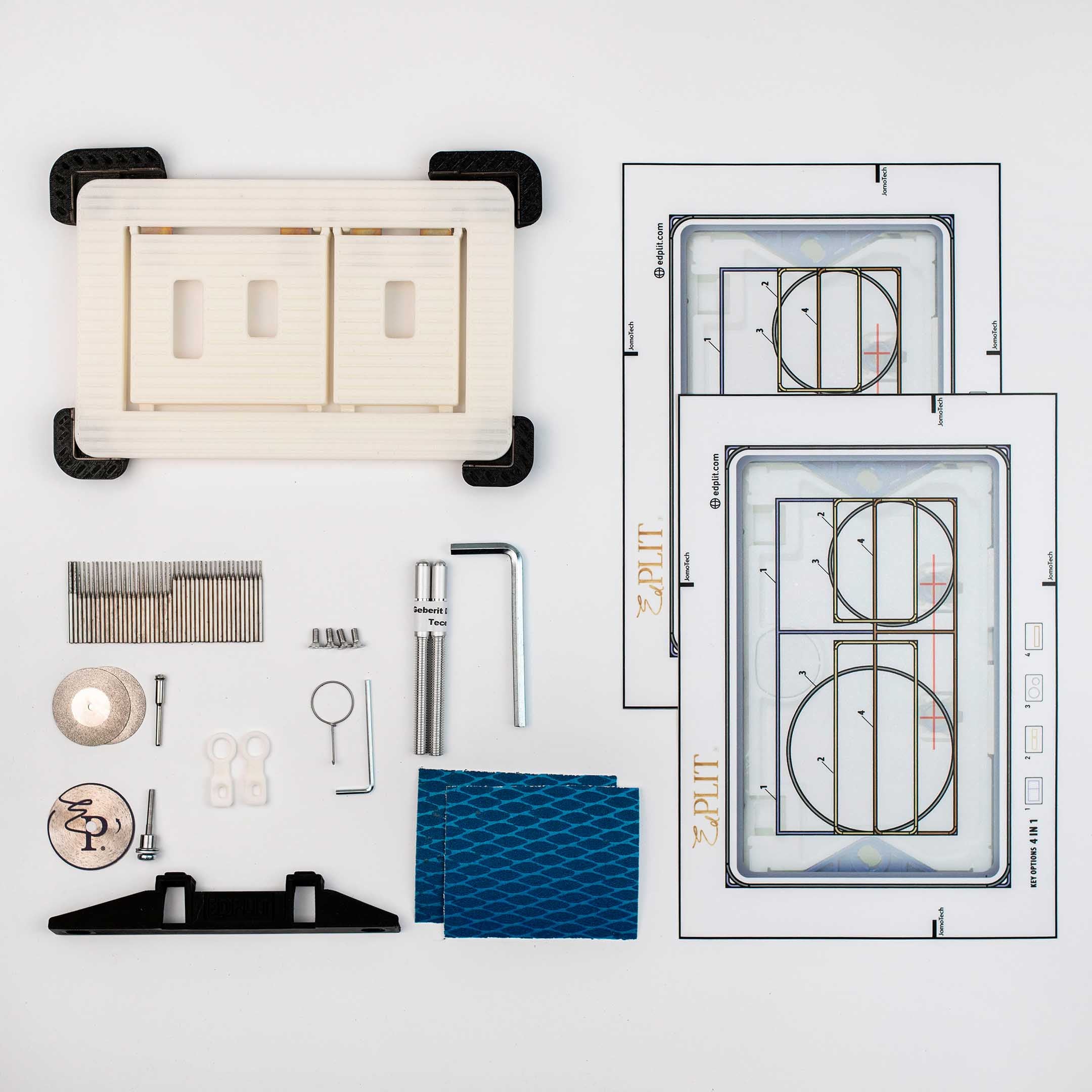

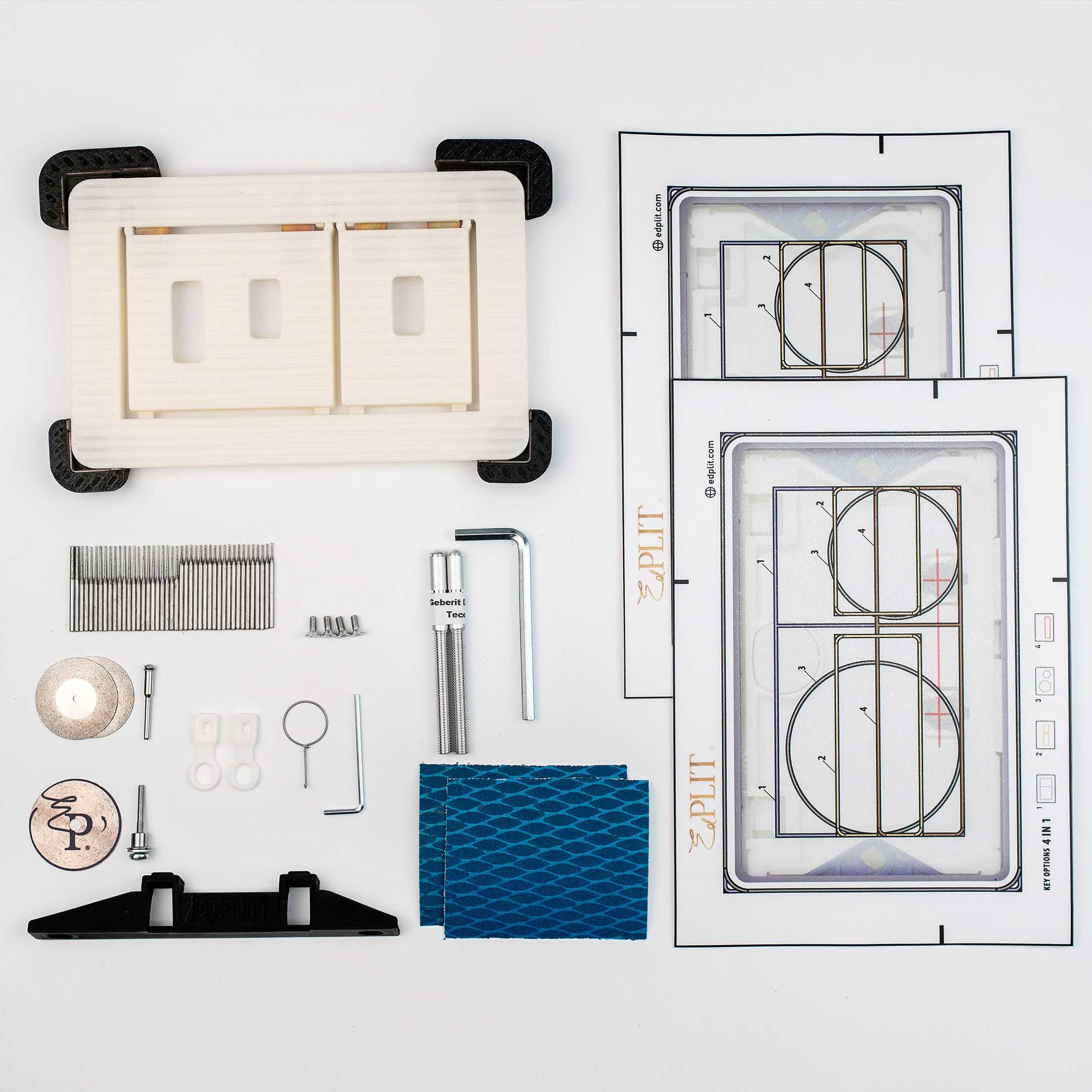

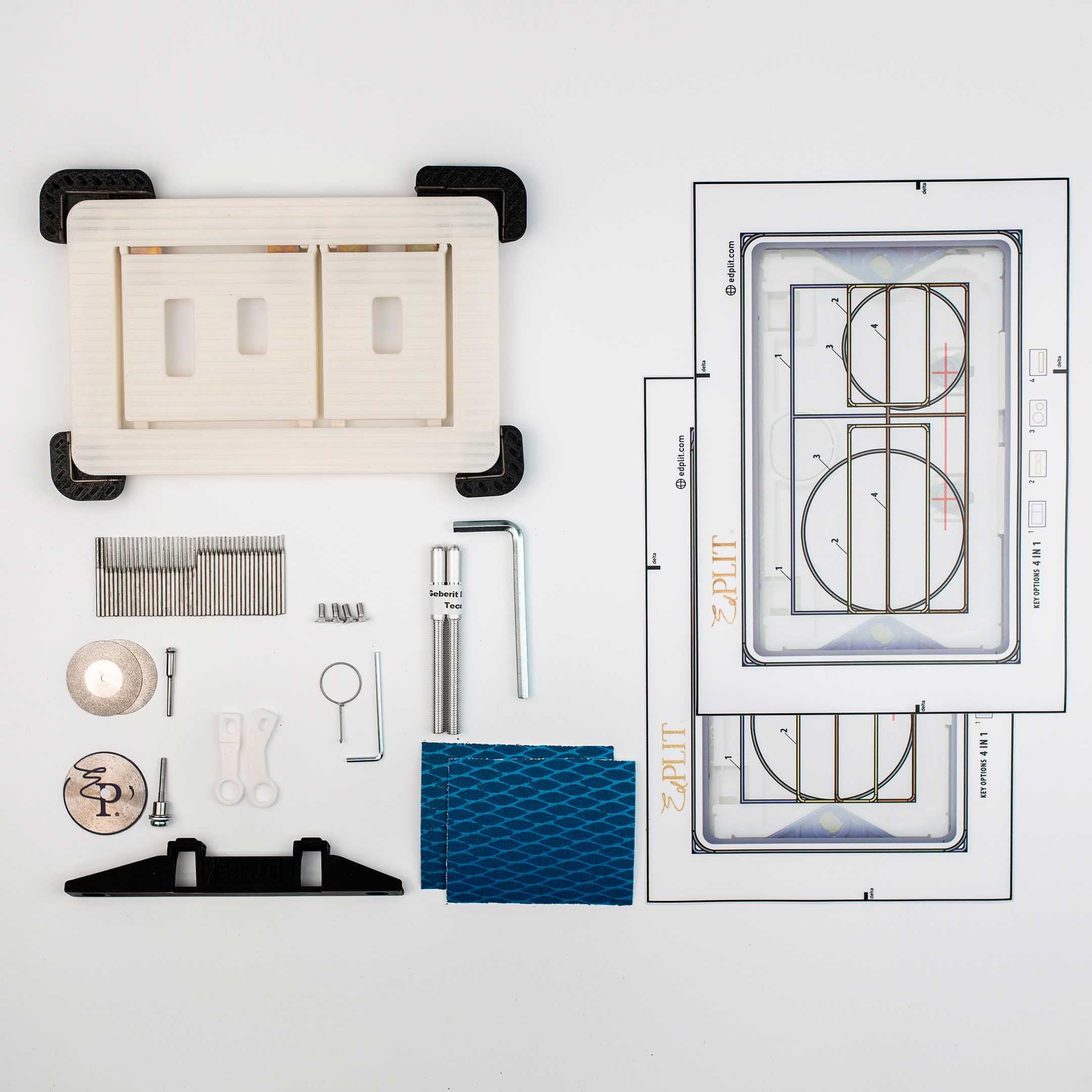

WHAT'S IN THE BOX

Design Box

Plate

Magnetic Mounting Corners

Tile Cutting Disc + Holder

Tile Sanding Disc + Holder

Adhesive cutting template M1

Fixing Ears for Sigma/Tece/Alcaplast/Omega

Fixing Ears for Delta

Sanding Paper

Drill Bits

Pushers for Sigma/Alcaplast/Omega

Pushers for Tece/Delta

Adjastment tool

Removal hook

Fixing Screws

WHY CHOOSE US?

Proven durability

Proven durabilitytested in 500+ projects, 10-year warranty

Easy installation & adjustment

designed for fast setup using the included adjustment tool and standard tiling equipment

Gentle press activation

the system is activated by lightly pressing the tile, without visible buttons

Fully concealed

blends seamlessly with ceramic, porcelain, or stone surfaces

Patented invisible system

the first fully integrated and patented flush button behind tiles

Compatible with top installation systems

works with Geberit Sigma, Delta, Omega, TECE, Jomotech and OLI frames

Hidden Flush Button Edplit M1 is designed for seamless concealed installation behind wall tiles.


Compatible with the most popular concealed flushing systems:

  • Geberit Sigma
  • Geberit Delta
  • Geberit Omega
  • AlcaPlast
  • TECE
  • OLI
  • JomoTech

The system is easy to adjust and service after installation.

The kit includes a mounting frame, an adjustment tool for button positioning, a hook tool for safe tile insert removal, and a precise adhesive cutting template (2 adhesive templates: One for the actual tile cutting, One as a spare or for training purposes. This allows you to practice or make adjustments if needed).

To create the tile insert, use the included adhesive template to mark the cut-out precisely. The insert will become the visible flush button, so accurate cutting is essential.

Recommended tools:

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone. (If you plan to use waterjet cutting, please contact our manager and we will provide you with the cutting files.)
Glue: PU glue

The system is compatible with:

Ceramic tiles up to 12 mm
Porcelain tiles up to 12 mm

Edplit Hidden Flush Button system is fully adjustable to fit various project needs:

  • Supports tile thickness up to 12 mm
  • Frame and push rods can be adjusted without special tools
  • Button position and sensitivity can be fine-tuned after tile installation
  • Quick and simple calibration via the button opening

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

  • Standard Delivery (14-21 business days): €15 - €89
  • Standard Delivery + Insurance (14-21 business days): €20 - €94
  • Express Delivery (5-14 business days): €24 - €98

Customs Fees & Import Taxes

Our prices do not include VAT, GST, or other import taxes.
Additional customs fees may apply depending on your location.
You will receive a notification from customs for payment before final delivery.
For any questions regarding shipping, feel free to contact our support team!

Processing Times

Orders are processed within 1-2 business days.
We ship orders Monday through Friday (excluding weekends and holidays).
Please note that processing and shipping are separate steps with different timeframes.

Features & Compatibility (M1)

Hidden Flush Button Edplit M1 is designed for seamless concealed installation behind wall tiles.


Compatible with the most popular concealed flushing systems:

  • Geberit Sigma
  • Geberit Delta
  • Geberit Omega
  • AlcaPlast
  • TECE
  • OLI
  • JomoTech

The system is easy to adjust and service after installation.

The kit includes a mounting frame, an adjustment tool for button positioning, a hook tool for safe tile insert removal, and a precise adhesive cutting template (2 adhesive templates: One for the actual tile cutting, One as a spare or for training purposes. This allows you to practice or make adjustments if needed).


Tools & Tips (Edplit Button)

To create the tile insert, use the included adhesive template to mark the cut-out precisely. The insert will become the visible flush button, so accurate cutting is essential.

Recommended tools:

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone. (If you plan to use waterjet cutting, please contact our manager and we will provide you with the cutting files.)
Glue: PU glue

The system is compatible with:

Ceramic tiles up to 12 mm
Porcelain tiles up to 12 mm


Tile Compatibility & Setup

Edplit Hidden Flush Button system is fully adjustable to fit various project needs:

  • Supports tile thickness up to 12 mm
  • Frame and push rods can be adjusted without special tools
  • Button position and sensitivity can be fine-tuned after tile installation
  • Quick and simple calibration via the button opening

Shipping rates

Shipping costs vary based on package size and destination. Final shipping costs are calculated at checkout.

  • Standard Delivery (14-21 business days): €15 - €89
  • Standard Delivery + Insurance (14-21 business days): €20 - €94
  • Express Delivery (5-14 business days): €24 - €98

Customs Fees & Import Taxes

Our prices do not include VAT, GST, or other import taxes.
Additional customs fees may apply depending on your location.
You will receive a notification from customs for payment before final delivery.
For any questions regarding shipping, feel free to contact our support team!

Processing Times

Orders are processed within 1-2 business days.
We ship orders Monday through Friday (excluding weekends and holidays).
Please note that processing and shipping are separate steps with different timeframes.


Before After

How It Works

STEP 1

Hidden Flush Button

This recessed button is designed for seamless integration into walls or concealed toilet systems. The opening can be cut manually or with a water jet, making installation straightforward. Ideal for use in both new construction and existing spaces without complications.

STEP 2

Invisible Sockets / Switches

Designed for flush mounting into walls, these sockets and switches fit standard electrical boxes. Their installation prioritizes safety and reliability, ensuring a clean and modern finish. Perfect for upgrading existing setups or installing in new projects.

STEP 3

Fan Systems

This system allows you to hide ventilation fans for a streamlined and aesthetically pleasing appearance. While installation is relatively simple, it is limited to new construction projects only, as retrofitting existing fans with concealed units is not feasible.

STEP 4

Access Hatch

Provides an elegant way to hide access points while maintaining easy reach to plumbing and electrical components. Installation is efficient and practical, making it suitable for both fresh builds and renovation projects.

STEP 5

Hidden Towel Holder

A minimalist and elegant towel hook designed for effortless mounting. It fits seamlessly into both new builds and already finished rooms, offering a stylish solution without sacrificing convenience.

Complete your project
with the Edplit Bundle:

Flush Button + Invisible Socket + Invisible Switch — designed for seamless
integration and installation.

FAQ

Can I service it without removing tiles?

Yes, Edplit is compatible with Geberit Sigma, Delta, Omega,Tece, Jomo Tech and OLI frames. Just select your version.

Is it easy to install?

Yes, Edplit is compatible with Geberit Sigma, Delta, Omega,Tece, Jomo Tech and OLI frames. Just select your version.

What if the tile thickness varies?

Yes, Edplit is compatible with Geberit Sigma, Delta, Omega,Tece, Jomo Tech and OLI frames. Just select your version.

How to cut tiles properly?

Yes, Edplit is compatible with Geberit Sigma, Delta, Omega,Tece, Jomo Tech and OLI frames. Just select your version.

Is the system compatible with my flushing frame?

Yes, Edplit is compatible with Geberit Sigma, Delta, Omega,Tece, Jomo Tech and OLI frames. Just select your version.
